Asco E210B156SCA8-230/50 Solenoid Valves
Asco E210B156SCA8-230/50 Solenoid Valves
Couldn't load pickup availability
IN STOCK - SAME DAY DISPATCH

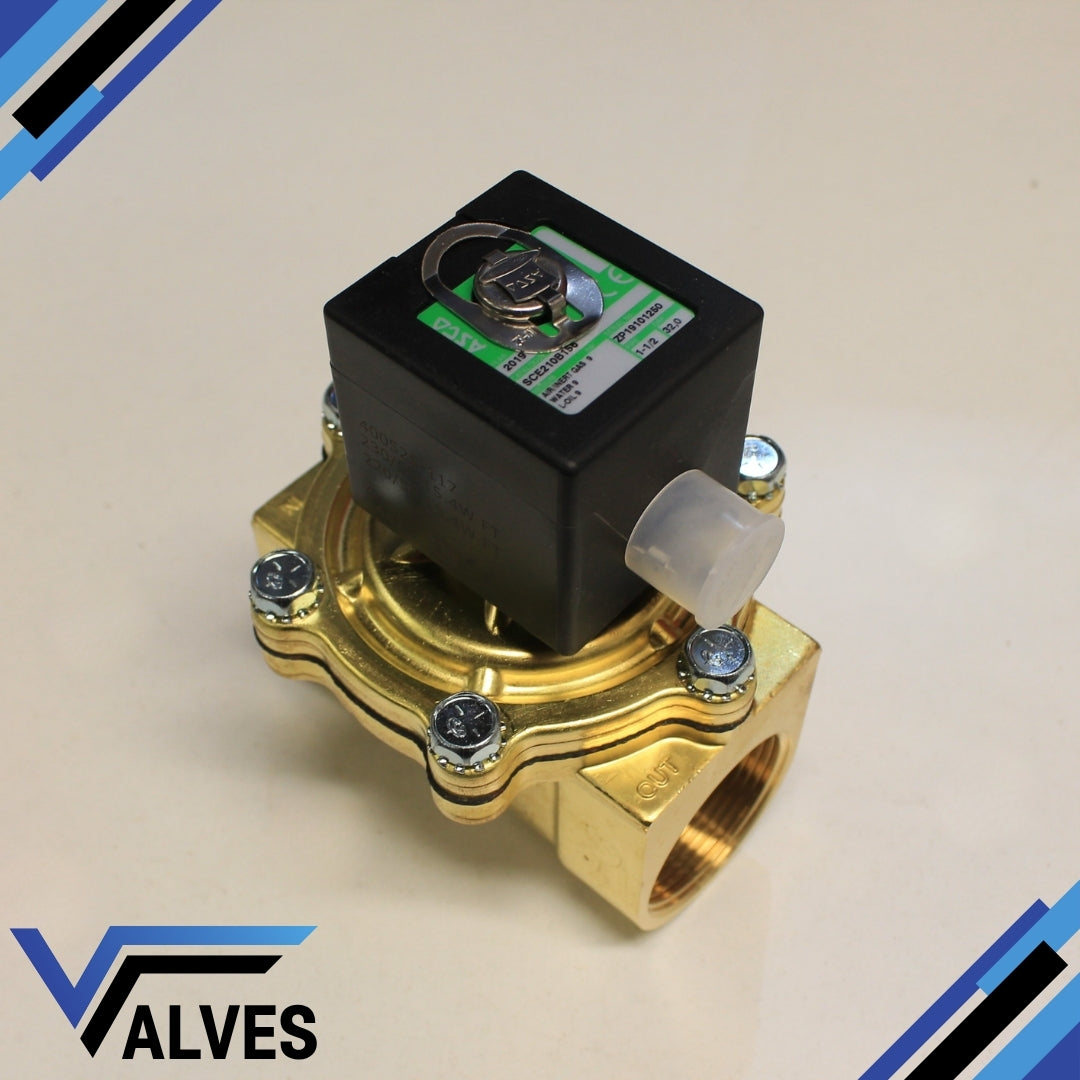

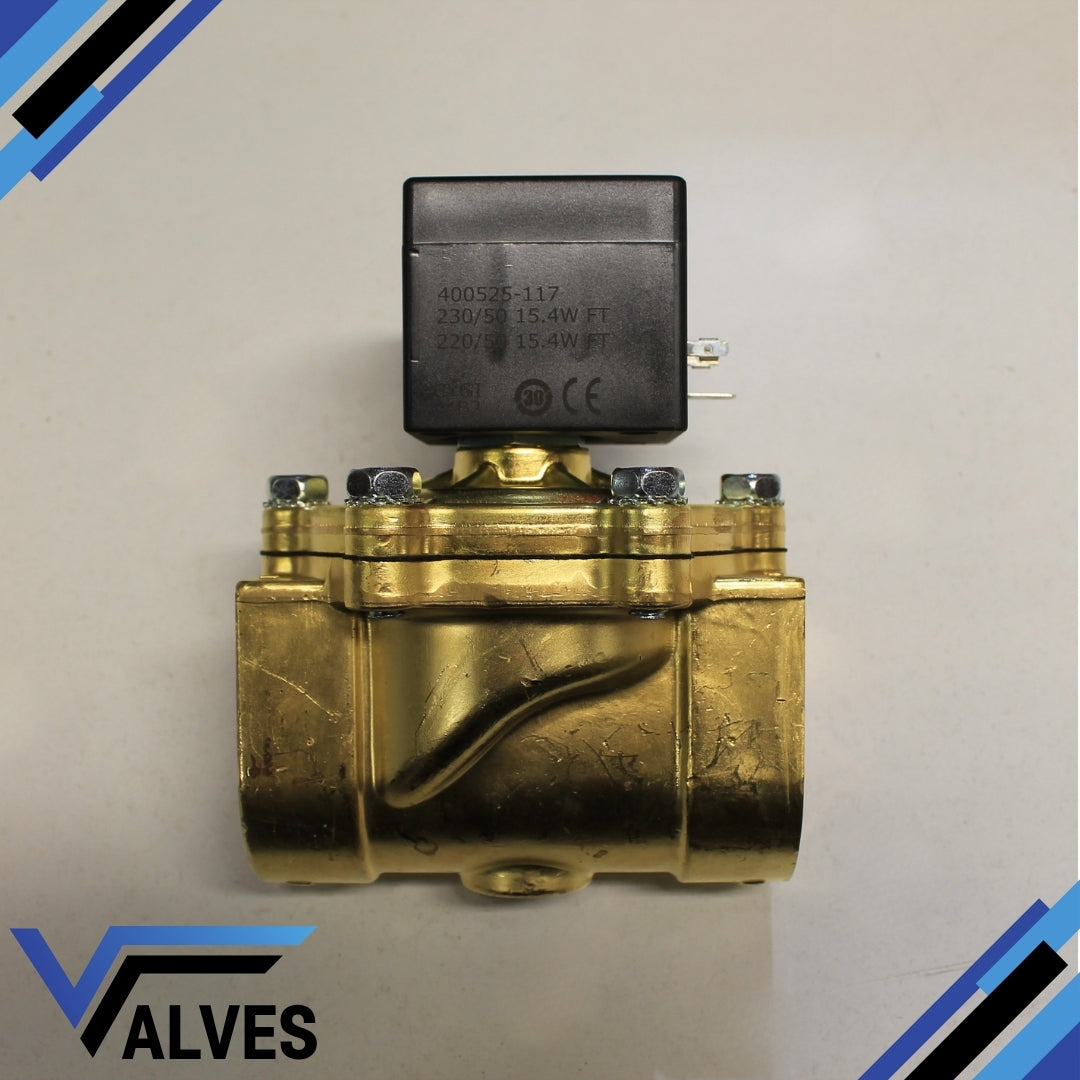

The ASCO E210B156SCA8 Solenoid Valve (230/50) is a 2/2 normally closed pilot-operated valve built for reliable control of air, water, and light oil across a wide range of industrial and process applications. Featuring a brass body with a 32 mm orifice and a 1.5” port size, this valve offers excellent flow capacity and durability in demanding environments.
Key Features:
Function: 2/2 Normally Closed (NC)
Operation: Pilot operated
Body material: Brass

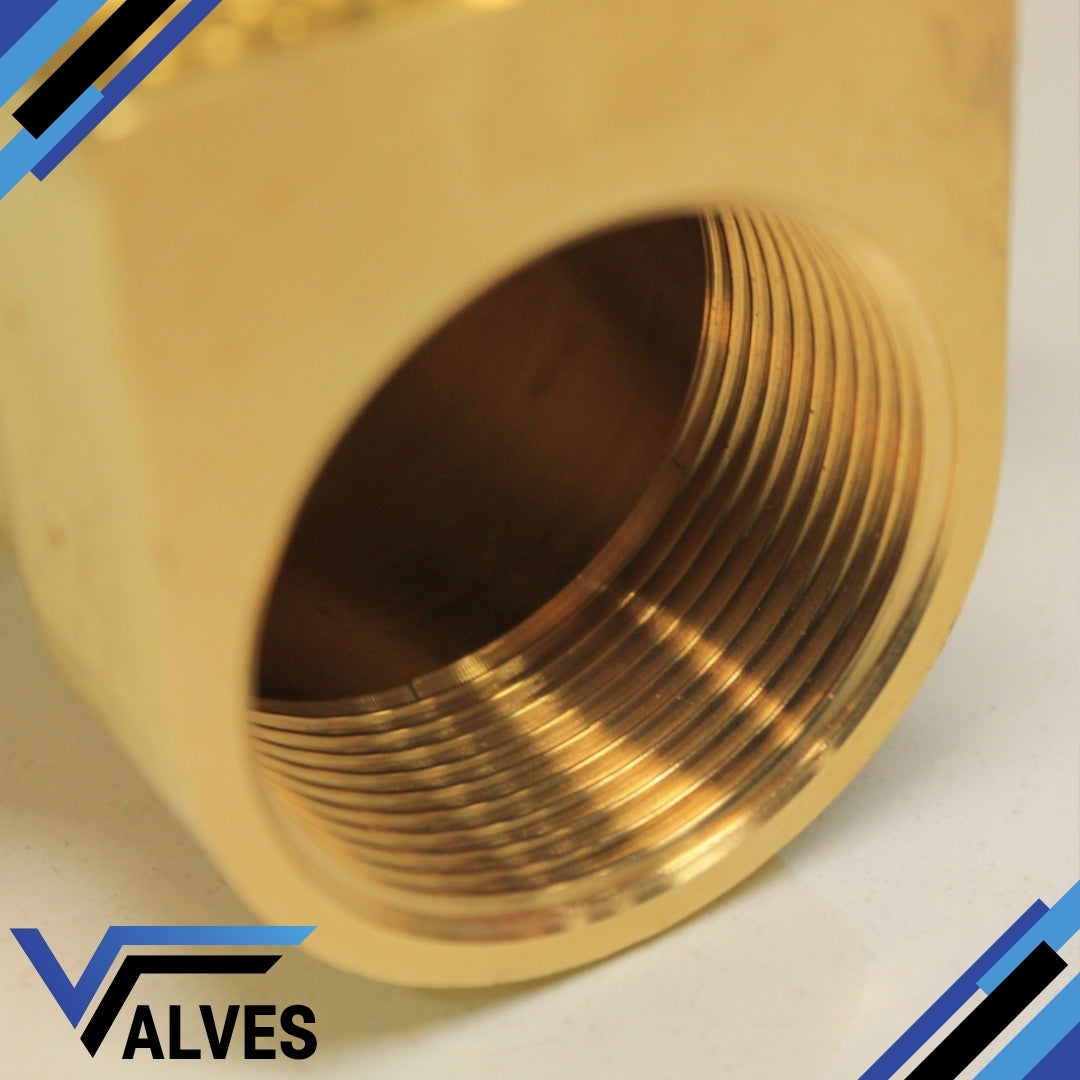

Port size: 1.5”
Orifice size: 32 mm
Face-to-face (F2F): 111 mm

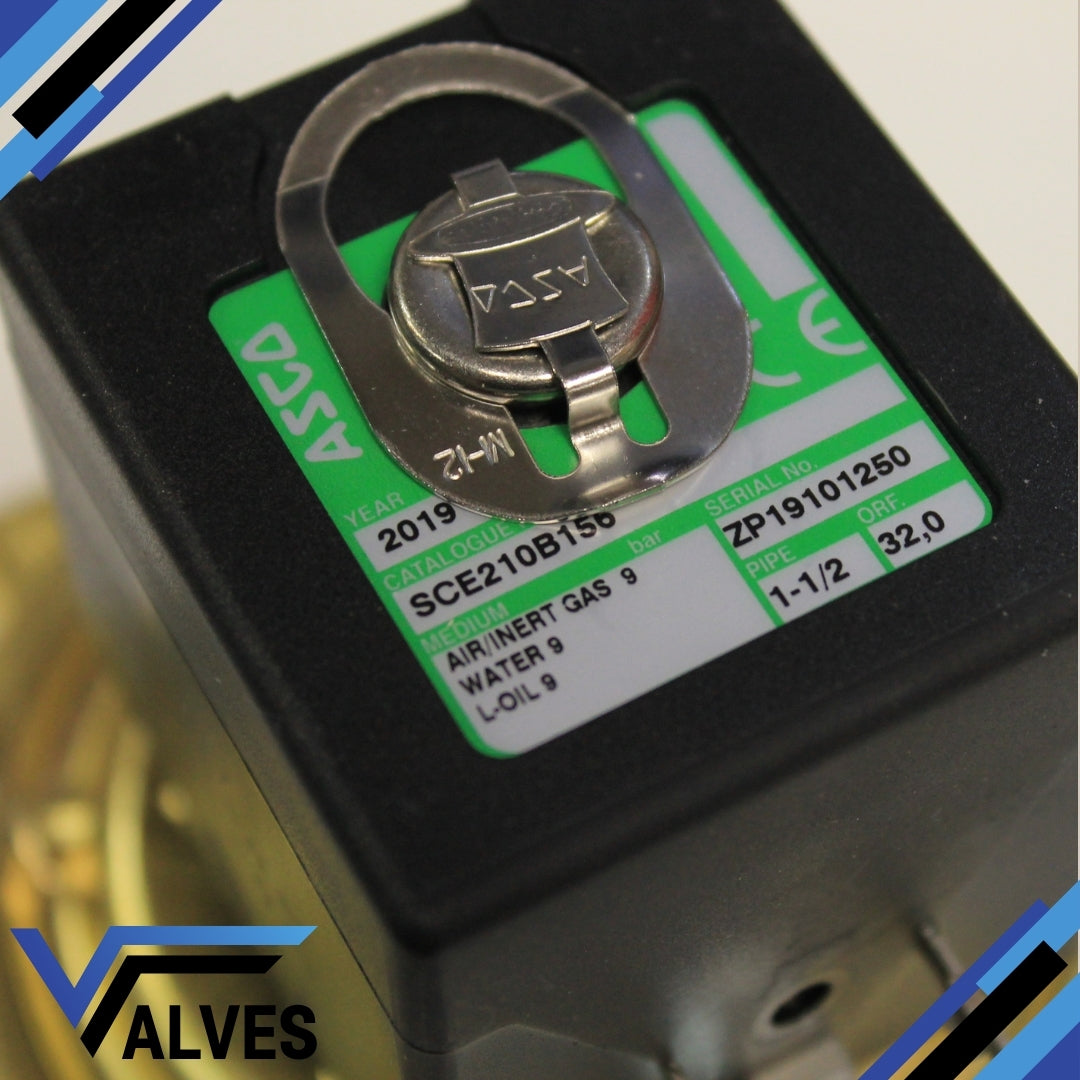

Media: Air, water, light oil

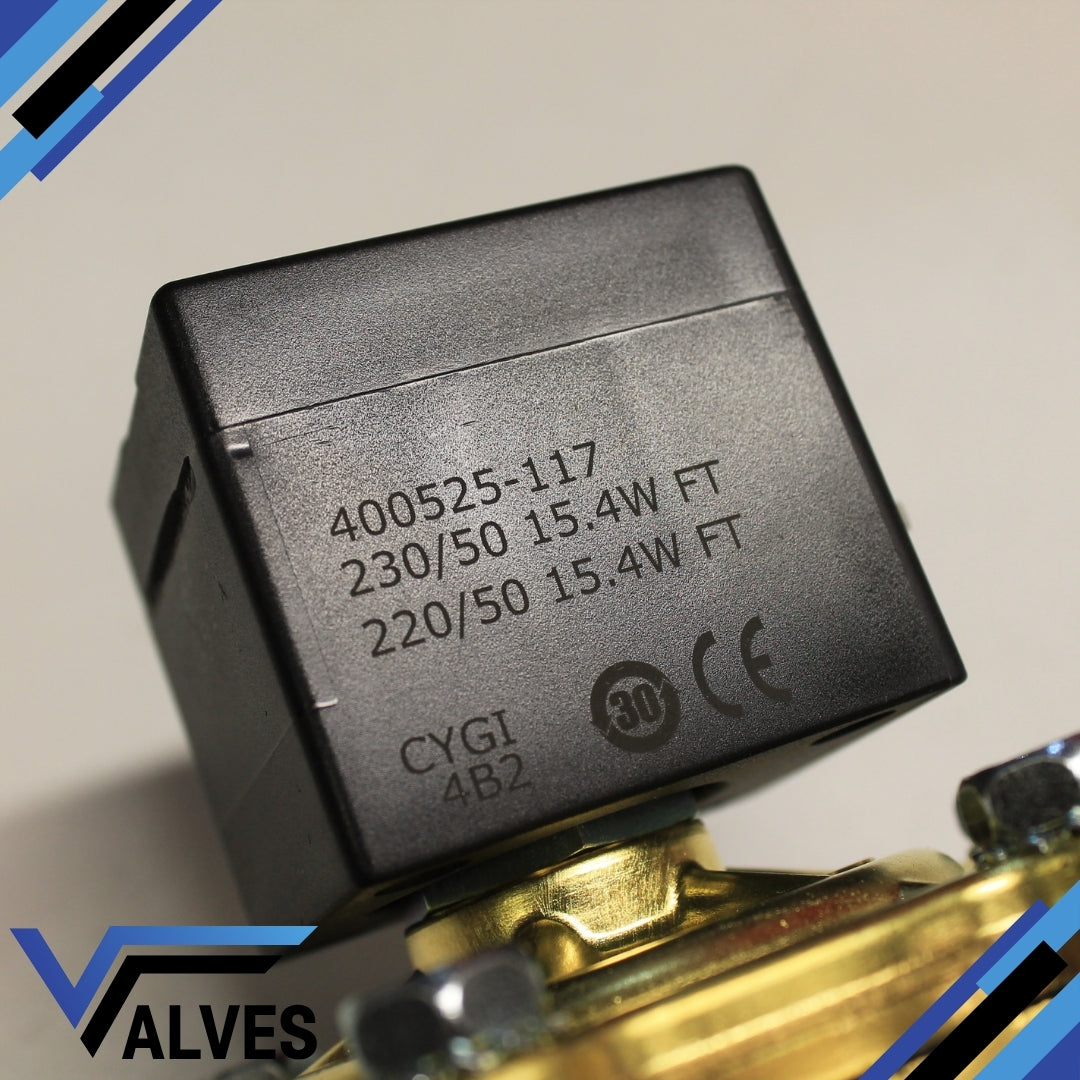

Voltage: 230V AC, 50Hz
High flow capacity for general service applications
Durable and reliable ASCO construction
Share
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
