ASCO SCE210B156 Solenoid Valve
ASCO SCE210B156 Solenoid Valve
Couldn't load pickup availability
IN STOCK - SAME DAY DISPATCH

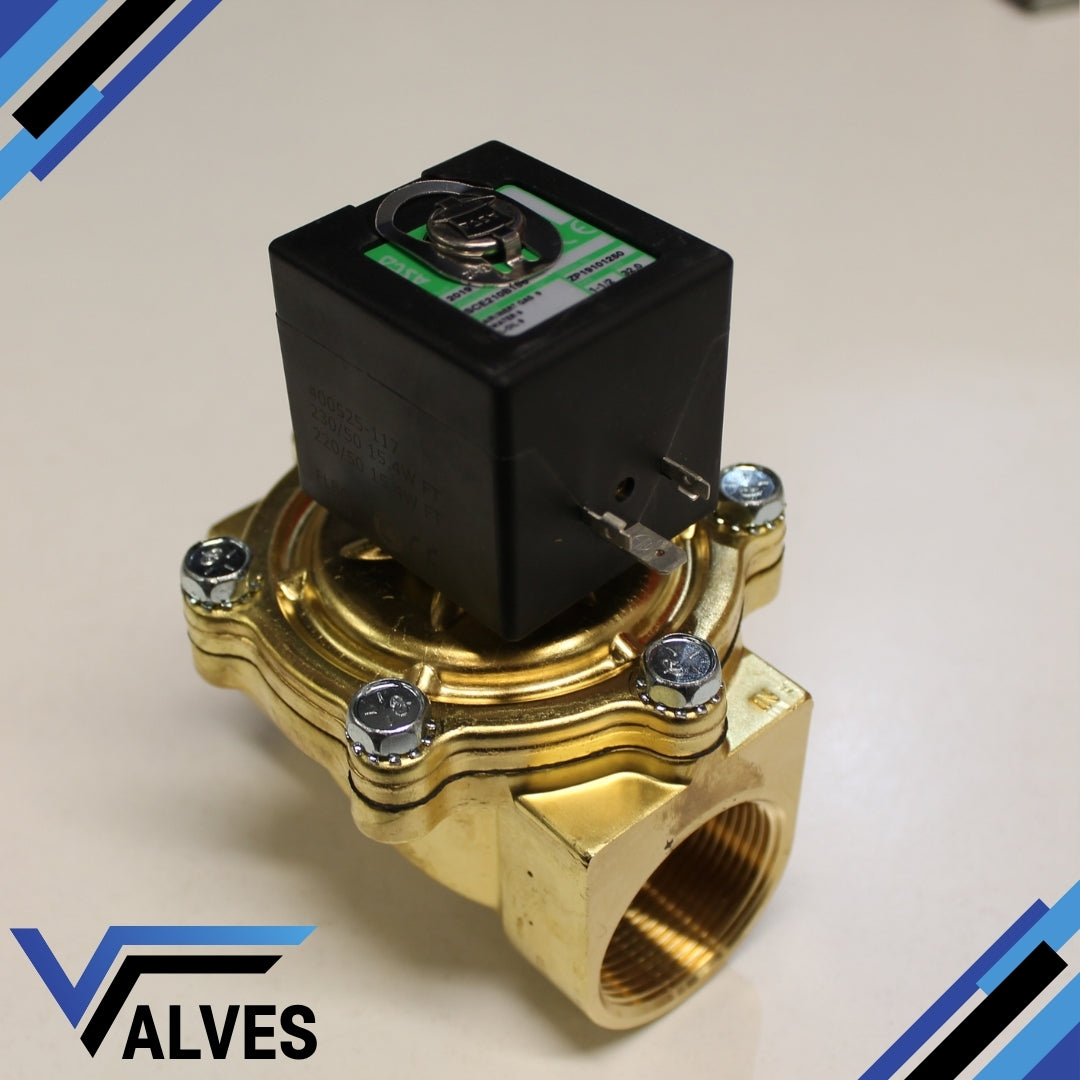

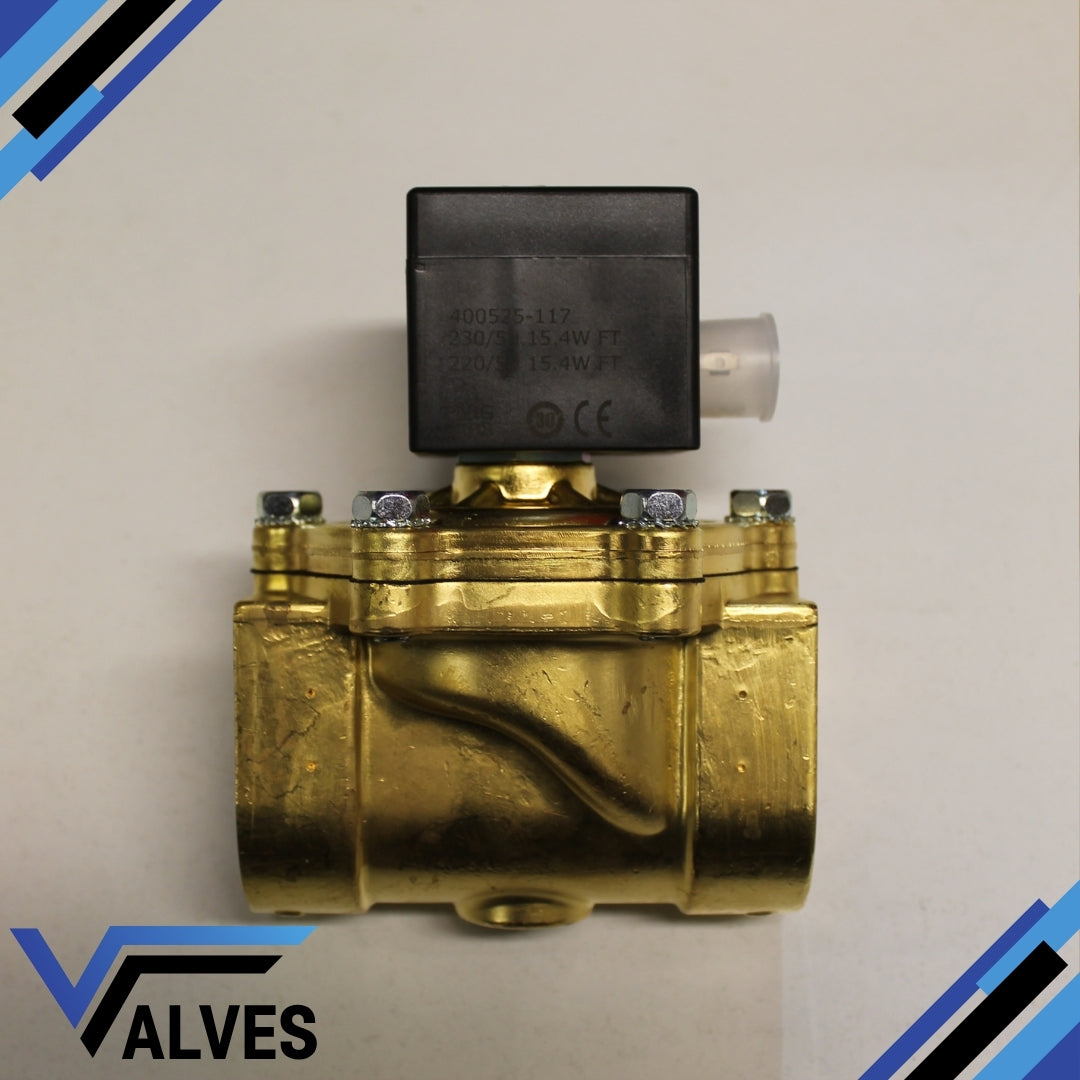

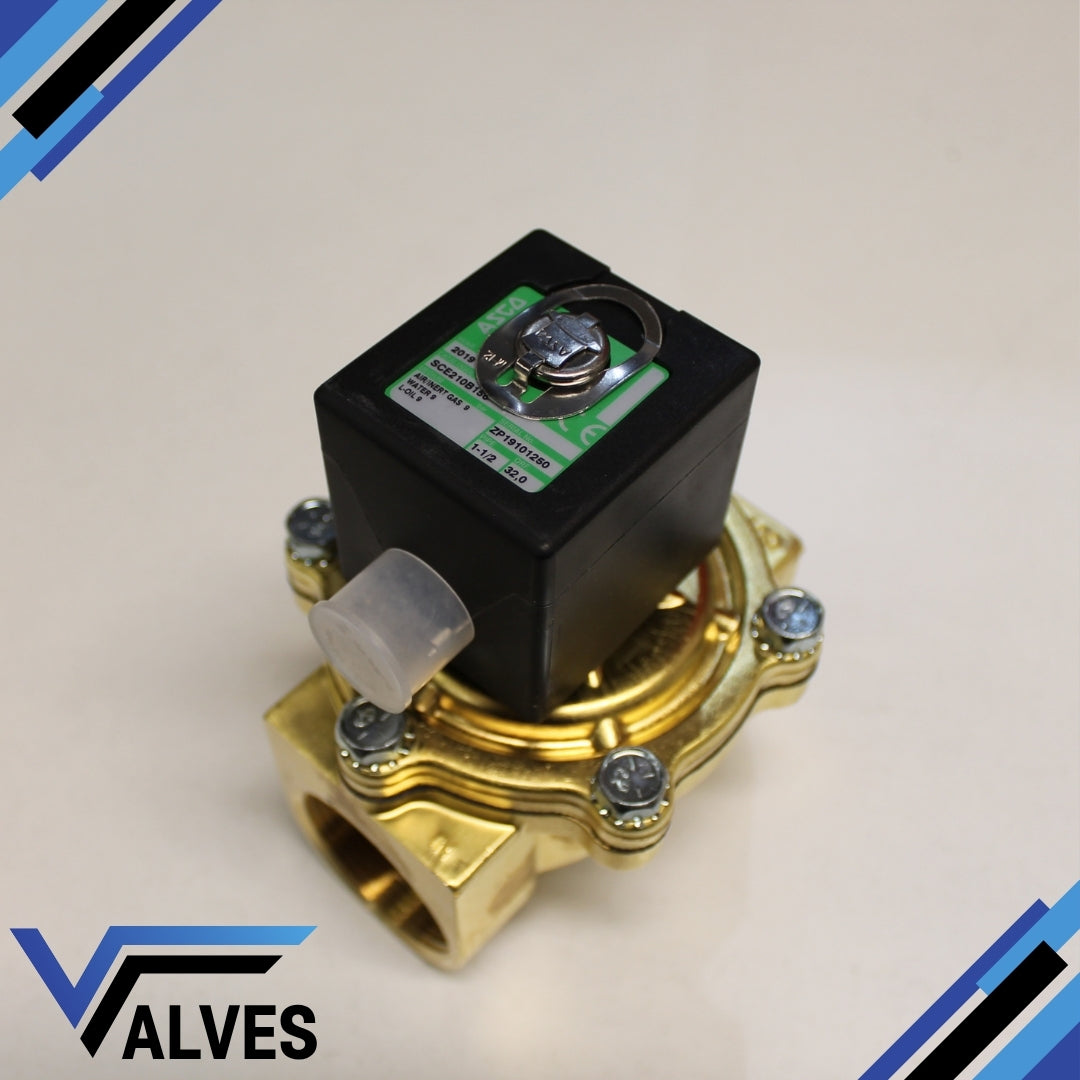

The ASCO SCE210B156 Solenoid Valve is a robust and high-capacity 2/2 normally closed pilot-operated valve, designed for reliable flow control across air, inert gas, light oil, and water applications. Featuring a brass body and NBR sealing, this valve ensures dependable performance, resistance to corrosion, and long operational life, making it suitable for a wide variety of industrial uses.
Key Features:
Body material: Brass
Seal material: NBR
Valve type: 2/2 Normally Closed, pilot-operated
Media: Air, inert gas, light oil, water
Operating pressure: Air: 0–5 bar | Water: 0–5 bar | Light oil: 0–3 bar
Orifice size: DN32 mm
Pipe size: Rp 1 1/2 (ISO 7/1)

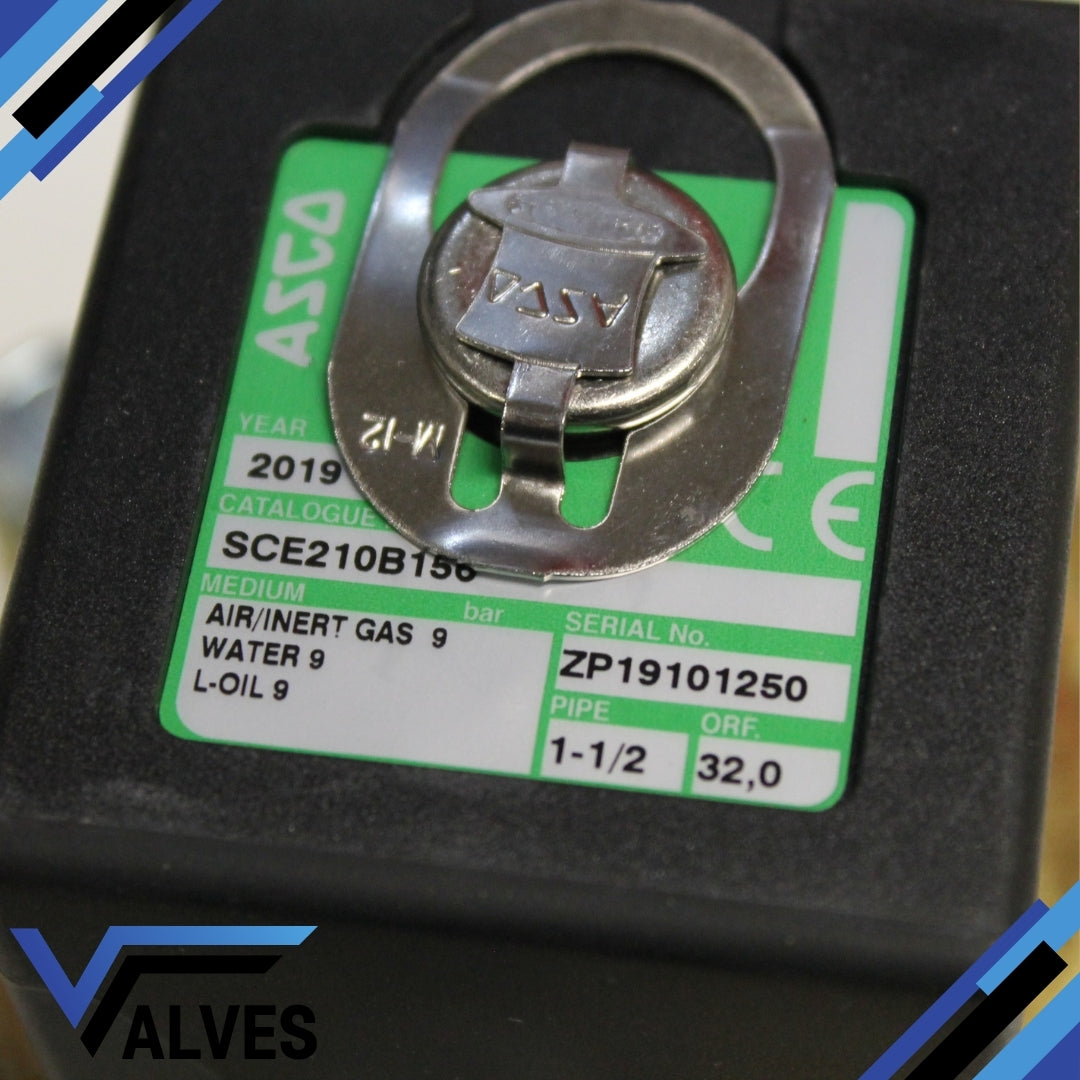

Coil class: F | Voltage: 24 VDC | Power: 23 W
Ambient temperature range: -20°C to +50°C
Fluid temperature range: -20°C to +85°C
Weight: 2.8 kg
Electrical entry: Cable gland
Manufacturer: ASCO – a trusted name in solenoid valve technology
Share
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
