Bronze Ball Valve – Screwed BSPP – PN16 – Full Bore

Bronze Ball Valve – Screwed BSPP – PN16 – Full Bore

£35.00 GBP
£35.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size

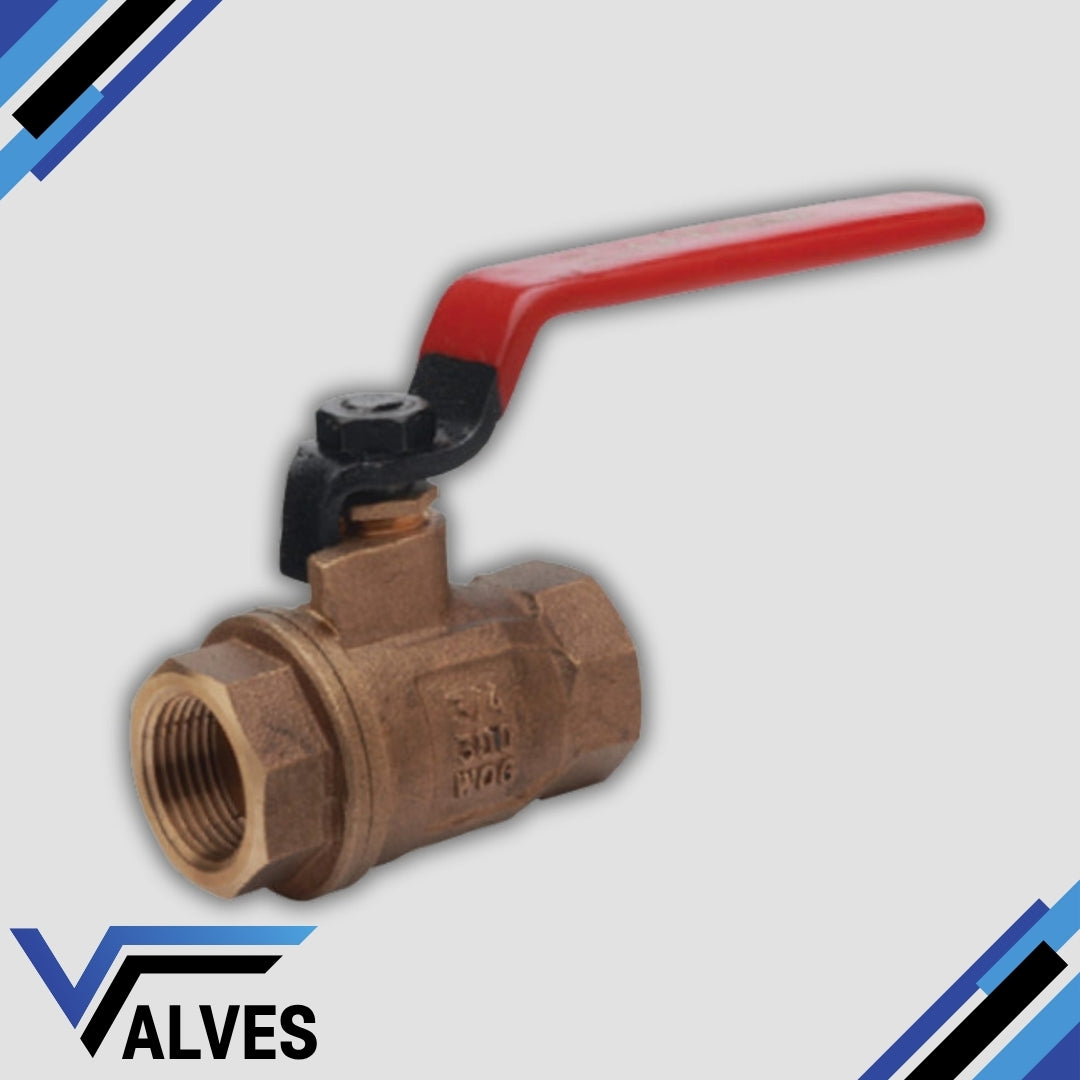

The Bronze Ball Valve – Screwed BSPP – PN16 Rated is a robust, compact isolation valve designed for general-purpose fluid control across industrial, commercial, and HVAC systems. Manufactured with a two-piece ASTM B62 bronze body, this valve offers excellent corrosion resistance and mechanical reliability.

Equipped with BSPP threaded ends for quick, leak-free installation, it features a chromed brass ball for smooth operation, PTFE seats for chemical resistance, and a clear red lever handle for confident manual actuation. Rated to 600 psi and suitable for temperatures between 0°C and 120°C, this valve provides long-lasting performance in water, oil, and air systems.

Key Features:

- Screwed BSPP ends for easy, standardised installation

- ASTM B62 bronze body with chromed brass full bore ball

- PTFE seats for reliable sealing and chemical resistance

- Red lever handle for clear and secure manual control

- Rated to 600 psi, temperature range 0°C to 120°C

- Ideal for water, air, oil, and light chemical applications

View full details

FAQ's

What is the difference between a valve and an actuator?

A valve controls the flow of a fluid (such as water, gas, or steam), while an actuator is the device that operates the valve — automatically opening, closing, or positioning it. Actuators can be electric, pneumatic, or hydraulic, depending on the application and control requirements.

What types of actuators are available?

The main types of actuators are:

Pneumatic actuators – use compressed air for fast, reliable operation.

Electric actuators – use electrical power for precise control.

Hydraulic actuators – use fluid pressure for high-torque applications.

Each type offers unique advantages depending on the environment, media, and system control needs.

How do I choose the right actuator for my valve?

To select the correct actuator, consider:

Valve type and torque requirement

Power source available (air, electric, or hydraulic)

Operating environment (temperature, humidity, hazardous area)

Control signal type (on/off or modulating)

Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.

What are the main types of valves used in automation?

The most common valves in automated systems include:

Ball valves – for tight shutoff and quick operation.

Butterfly valves – for larger flow control with compact design.

Globe valves – for precise throttling and flow regulation.

Check valves – to prevent backflow.

Gate valves – for full bore flow isolation.

What’s the difference between a double-acting and spring-return actuator?

Double-acting actuators use air (or power) to both open and close the valve.


Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.

How often should valves and actuators be serviced?

Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.

This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
