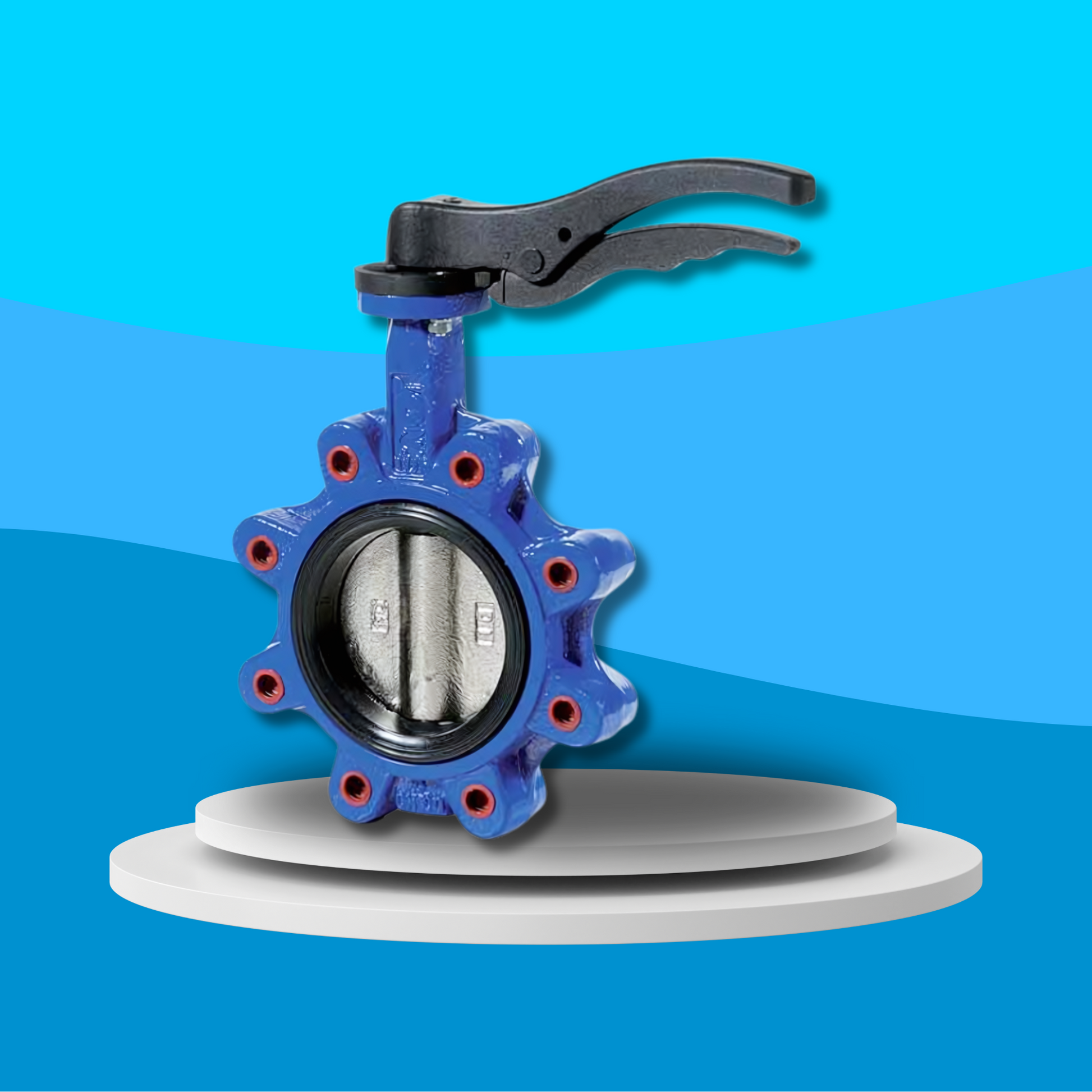

WRAS Approved Lugged & Tapped Butterfly Valve - EPDM - ANSI 150
WRAS Approved Lugged & Tapped Butterfly Valve - EPDM - ANSI 150
Couldn't load pickup availability
WRAS Certified
Introducing the WRAS Approved Lugged & Tapped Butterfly Valve - EPDM - ANSI 150, engineered for exceptional versatility and efficiency in fluid control systems. This valve features an ISO 5211 compliant direct mount, an epoxy-coated ductile iron body, and a 316 stainless steel disc with an EPDM liner, ensuring durability and reliability across various applications. Designed to support temperatures from -10°C to 120°C, it complies with the 97/23/CE (PED) Directive CE 1115, making it a perfect choice for systems requiring secure, leak-proof operation with a locking lever mechanism.
Key Features:
- WRAS Approved: Certified to meet stringent WRAS standards for water safety and quality.
- High-Quality Construction: Made from EN GJS 400-15 ductile iron with an epoxy coating for enhanced durability and corrosion resistance.
- Reliable Performance: Incorporates a CF8M stainless steel disc and EPDM liner for superior sealing and longevity.
- Wide Temperature Range: Suitable for temperatures from -10°C to 120°C, with a peak of 130°C.
- Secure Operation: Features a locking lever mechanism for secure and precise control.
- Easy Integration: Designed for seamless integration into existing fluid control systems.
- Versatile Applications: Ideal for a range of residential, commercial, and industrial water systems.
Specifications:
- Mounting Standard: ISO 5211 Direct Mount
- Body Material: Epoxy Coated Ductile Iron
- Disc Material: 316 Stainless Steel
- Liner Material: EPDM
-
Operation Types:
- Locking Lever Operation: Available for sizes from 1” to 12”
- Gearbox Operation: Available for sizes from 14” to 24”
-
Compliance:
- Conforms to the 97/23/CE (PED) Directive CE 1115
- WRAS Approved: For sizes from 2” to 16”
-
Pressure Ratings:
- PN16 for sizes 1” to 12”
- PN10 for sizes 14” to 24”
- Temperature Range: -10°C to 120°C
Share
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
