• Premium Bronze Ball Valve – Flanged PN16 – ISO 5211 Mount
1 1

Valves UK

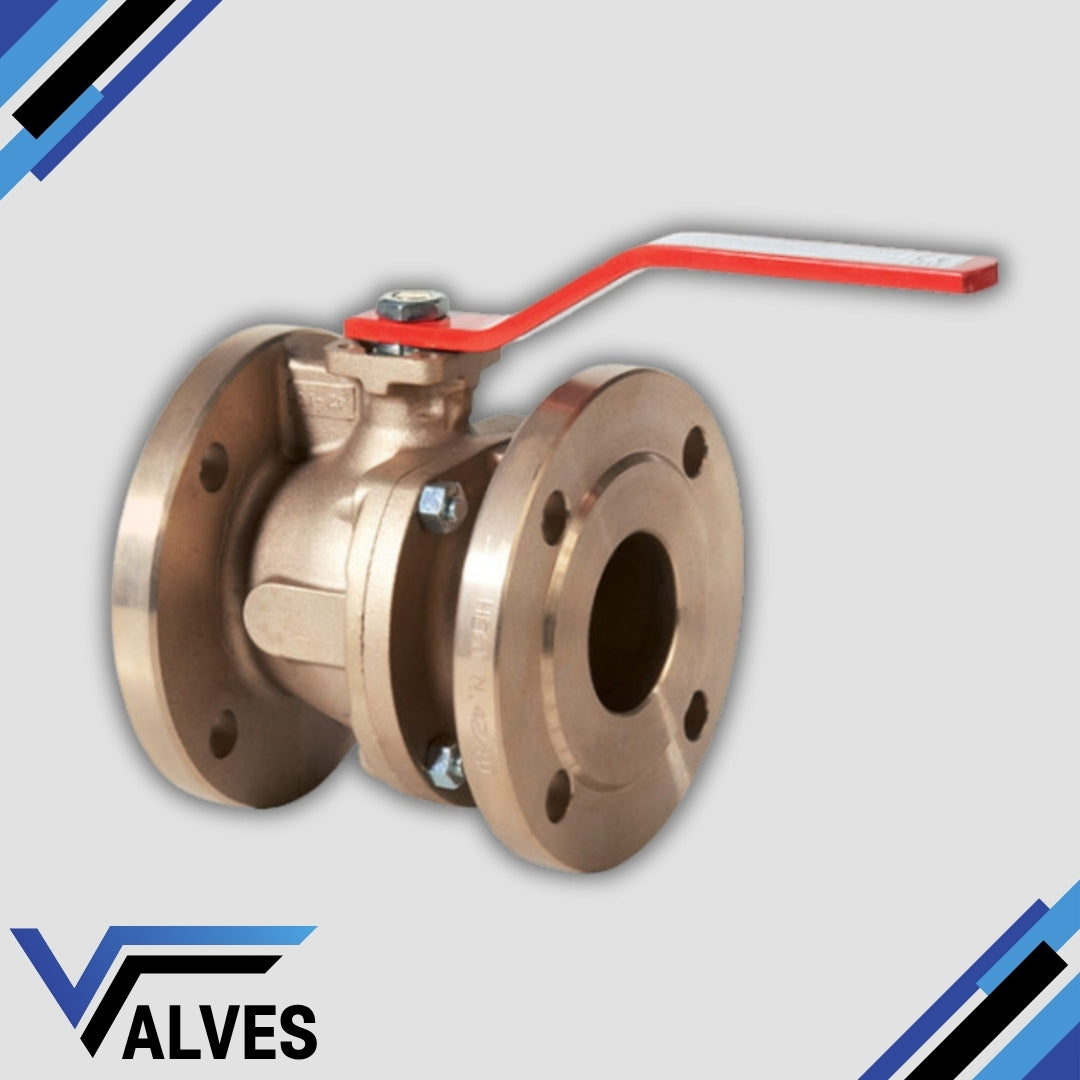

Premium Bronze Ball Valve – Flanged PN16 – ISO 5211 Mount

Premium Bronze Ball Valve – Flanged PN16 – ISO 5211 Mount

£325.00 GBP
£325.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size

Built for demanding environments, the Premium Bronze Ball Valve – Flanged PN16 combines precision engineering with high-performance materials to deliver dependable isolation across marine, industrial, and process systems. The ASTM B62 bronze body houses a full bore flow path and a 316 stainless steel ball and stem, providing exceptional corrosion resistance and secure shut-off under pressure.

Designed to fit seamlessly into standard pipeline configurations, this valve features PN16 flanged ends with DIN F4/F5 face-to-face dimensions, and comes ISO 5211 direct mount ready, simplifying actuator installation. Internally, PTFE seats and Viton stem O-rings ensure smooth, low-torque operation with resistance to chemicals and high temperatures. Rated for continuous service from -10°C to +150°C and lever operated for clear, manual control, this is a rugged, reliable valve solution built to perform.

Key Features:

PN16 flanged ends, DIN F4/F5 face-to-face dimensions

ISO 5211 direct mount pad for actuator-ready setups

ASTM B62 bronze body with 316 stainless steel ball and stem

Full bore for unrestricted flow and minimal pressure loss

PTFE seats and Viton stem O-rings for durability under thermal and chemical stress

Operating temperature range: -10°C to +150°C

Lever operated for robust manual flow control

View full details

FAQ's

What is the difference between a valve and an actuator?

A valve controls the flow of a fluid (such as water, gas, or steam), while an actuator is the device that operates the valve — automatically opening, closing, or positioning it. Actuators can be electric, pneumatic, or hydraulic, depending on the application and control requirements.

What types of actuators are available?

The main types of actuators are:

Pneumatic actuators – use compressed air for fast, reliable operation.

Electric actuators – use electrical power for precise control.

Hydraulic actuators – use fluid pressure for high-torque applications.

Each type offers unique advantages depending on the environment, media, and system control needs.

How do I choose the right actuator for my valve?

To select the correct actuator, consider:

Valve type and torque requirement

Power source available (air, electric, or hydraulic)

Operating environment (temperature, humidity, hazardous area)

Control signal type (on/off or modulating)

Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.

What are the main types of valves used in automation?

The most common valves in automated systems include:

Ball valves – for tight shutoff and quick operation.

Butterfly valves – for larger flow control with compact design.

Globe valves – for precise throttling and flow regulation.

Check valves – to prevent backflow.

Gate valves – for full bore flow isolation.

What’s the difference between a double-acting and spring-return actuator?

Double-acting actuators use air (or power) to both open and close the valve.


Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.

How often should valves and actuators be serviced?

Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.

This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
