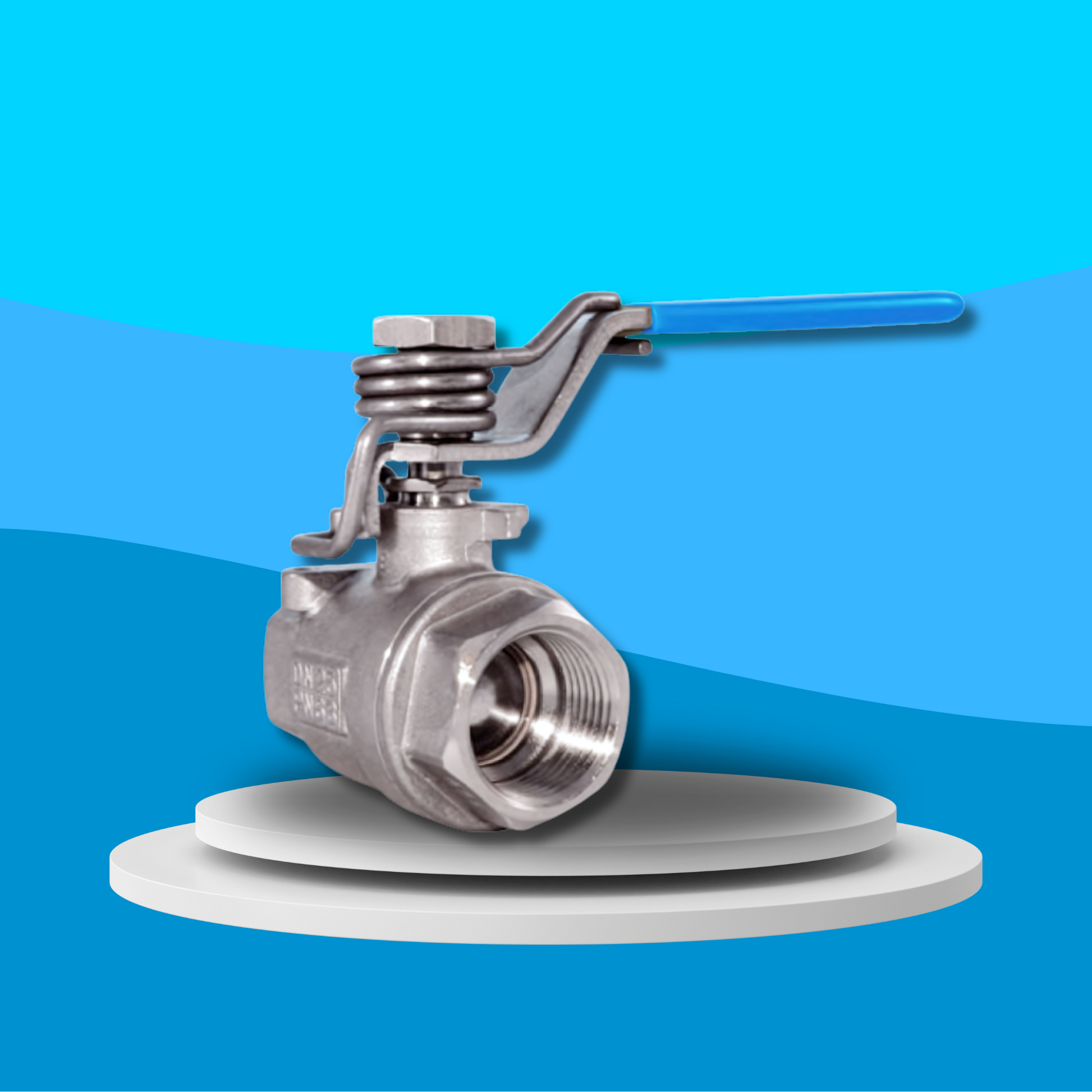

WRAS Approved Stainless Steel Two Piece Ball Valve with Spring Close Lever
WRAS Approved Stainless Steel Two Piece Ball Valve with Spring Close Lever
Couldn't load pickup availability
WRAS Certified
Introducing the WRAS Approved Stainless Steel Two Piece Ball Valve with Spring Close Lever, engineered for high performance and reliability in fluid control systems. These valves feature a robust stainless steel construction, ensuring exceptional durability and resistance to corrosion. The spring-close lever provides secure and automatic shutoff, making these valves ideal for a wide range of applications, from residential to industrial settings.
Key Features:
- WRAS Approved: Certified to meet stringent WRAS standards for water safety and quality.
- Secure Operation: Spring-close lever ensures automatic and reliable shutoff.
- Full Bore Design: Allows for maximum flow capacity and minimal pressure drop.
- High-Quality Materials: Constructed entirely from CF8M stainless steel for enhanced durability and corrosion resistance.
- Exceptional Sealing: Equipped with PTFE seats and seals for superior fluid control.
- Anti-Blowout Stem: Enhances safety and reliability in operation.
- Versatile Applications: Suitable for a variety of fluid systems in residential, commercial, and industrial environments.
- Easy Maintenance: Designed for straightforward maintenance and long-lasting performance.
Specifications:
- Material: CF8M Stainless Steel (Body, Cap, Ball), AISI 316 Stainless Steel (Stem), AISI 304 Stainless Steel (Gland Nut, Handle, Stem Nut, Spring)
- Seals: PTFE (Seat, Joint Gasket, Thrust Washer, Stem Packing)
- Approval: WRAS Approved
- Design: Two Piece, Full Bore
- Operation: Spring Close Lever
- Temperature Range: -10°C to 180°C
- Pressure Rating: PN63
- Corrosion Resistance: Superior resistance to corrosion and wear
- Sizes Available: DN15-DN50 (1/2"-2")
- Application: Residential, Commercial, and Industrial Fluid Systems
Share
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
