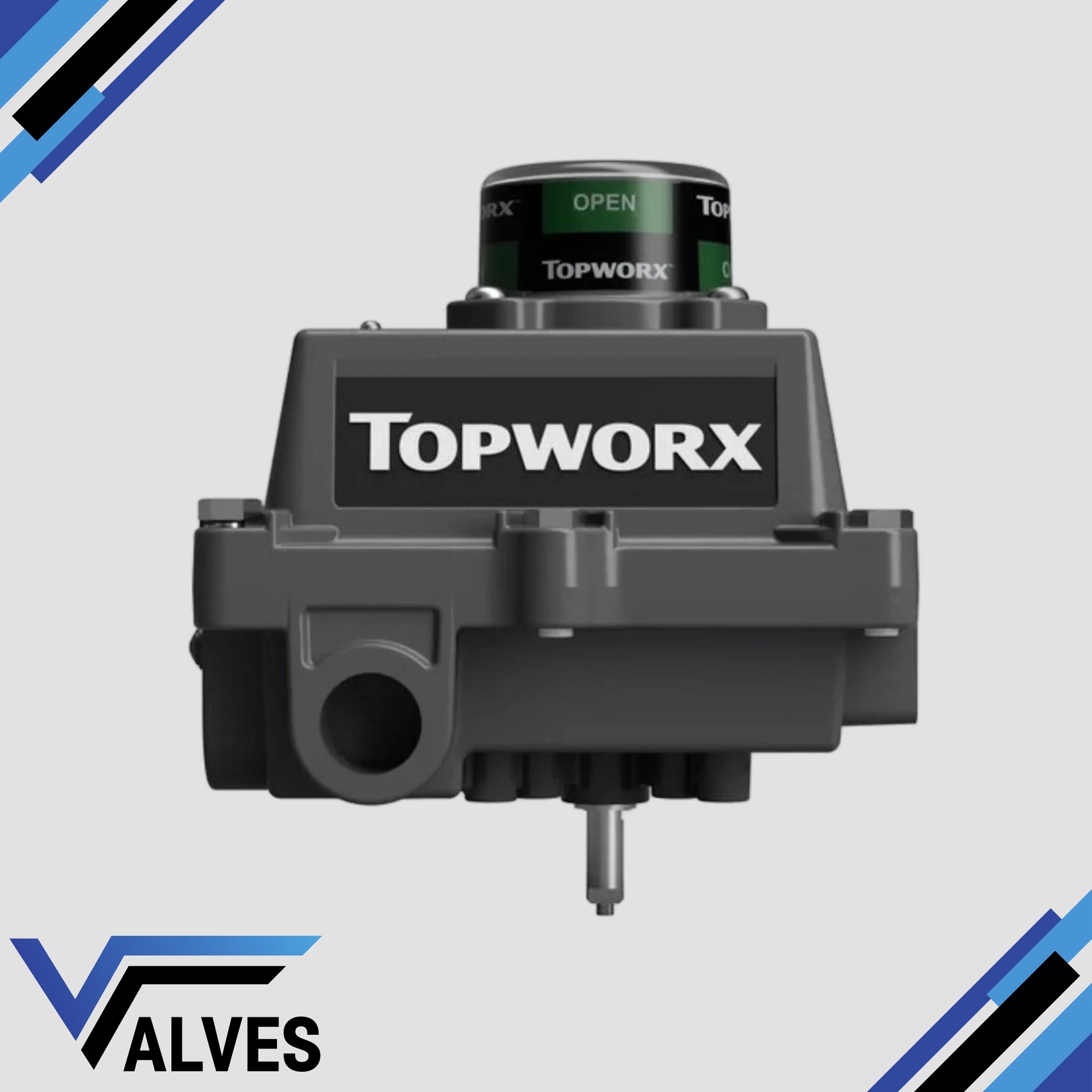

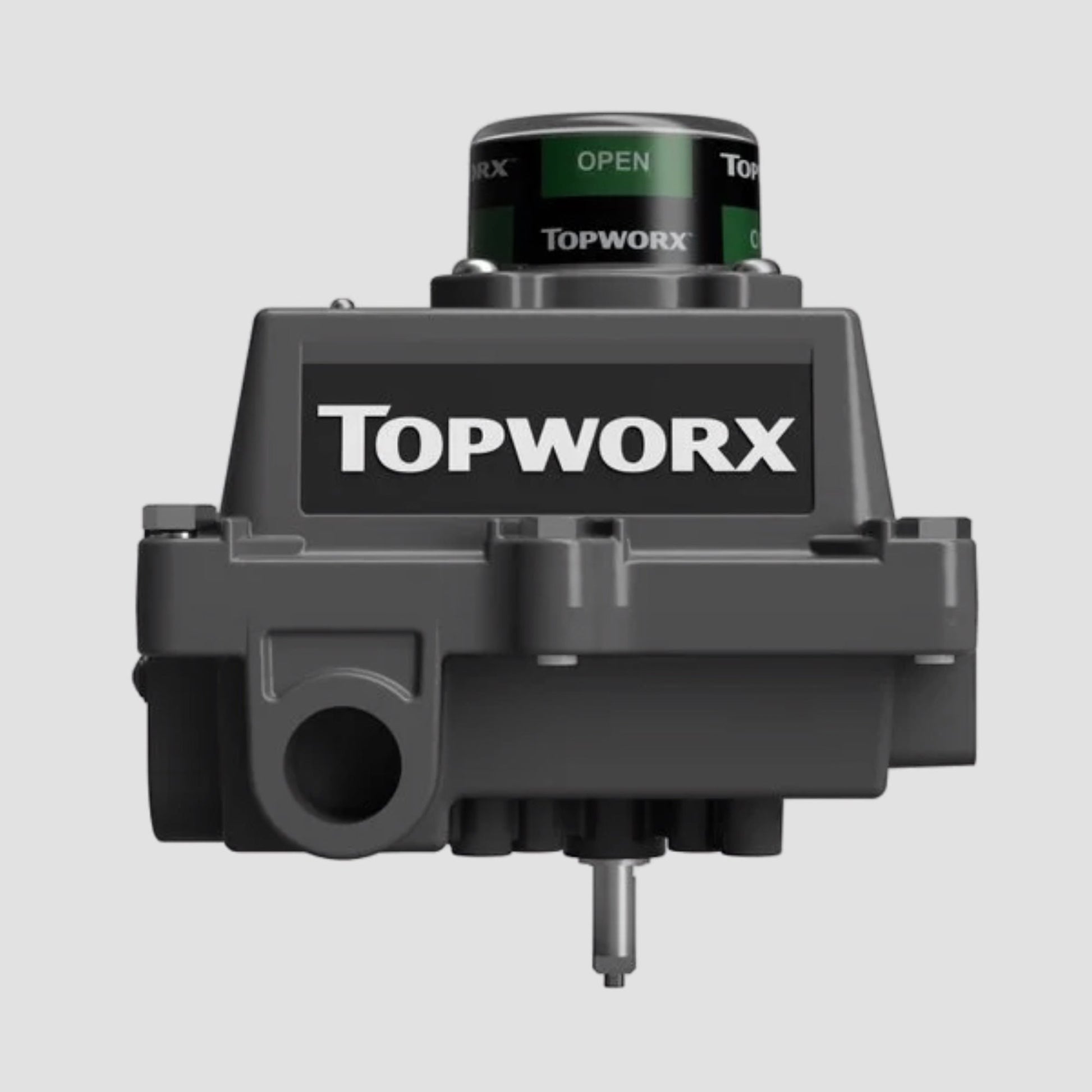

TopWorx Limit Switch Box DXP-001XNEB Valve Monitor
TopWorx Limit Switch Box DXP-001XNEB Valve Monitor
Couldn't load pickup availability
The TopWorx DXP-001XNEB Limit Switch Box is engineered for high-performance valve monitoring in hazardous environments. Built with a durable tropicalized aluminum enclosure, this model offers exceptional corrosion resistance and robust protection for challenging applications. Designed for explosion-proof and flameproof areas, it ensures safety and reliability in zones where safety is critical. The DXP-001XNEB features a NAMUR-compliant 316 stainless steel shaft and dual ¾" NPT conduit entries for versatile installations.
This model is equipped with a visual display, providing operators with a clear position indicator. Additionally, the Buna-N O-ring seals offer enhanced protection against environmental factors, ensuring durability over time. The DXP-001XNEB does not include switches, spool valves, or manual overrides, making it ideal for applications that require straightforward and reliable monitoring.
Key Features:
- Enclosure: Tropicalized aluminum, offering robust corrosion resistance
- Explosionproof/Flameproof: Ideal for hazardous environments
- Shaft: NAMUR-compliant, 316 stainless steel for long-lasting performance
- Visual Display: Clear indicator for easy position monitoring
- O-Rings: Buna-N for superior sealing capabilities
- Conduit Entries: Dual ¾" NPT for flexible installation options
Share
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
