Topworx Switchboxes

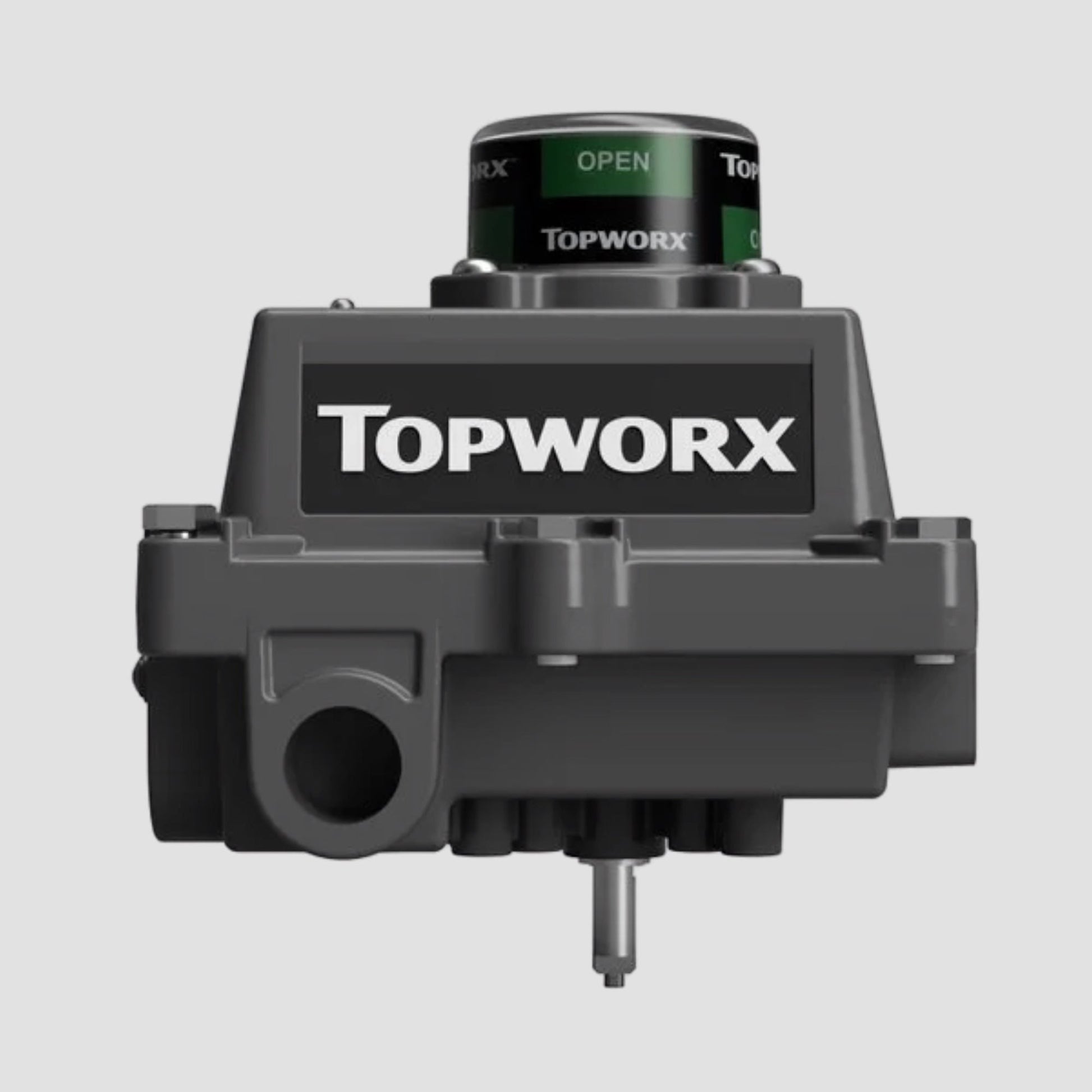

TopWorx Limit Switch Box DXP-00WGSEB Valve Monitor

TopWorx Limit Switch Box DXP-00WGSEB Valve Monitor

£250.20 GBP
£250.20 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The TopWorx DXP-00WGSEB is a durable and reliable limit switch box designed for industrial applications. Featuring a tropicalised aluminium enclosure, this valve monitor is built to withstand challenging environments, while the 316 stainless steel ¼" DD shaft ensures longevity and resistance to corrosion. The standard 90° green OPEN display provides clear visual feedback, enhancing operational efficiency.

This model is streamlined with no switch, pilot devices, or manual override, focusing on essential functionality without additional complexities. It also features two ¾" NPT conduit entries and Buna-N O-rings for optimal sealing and environmental protection. The DXP-00WGSEB offers a practical solution for installations where durability and reliability are prioritised.

Key Features:

  • Enclosure: DXP tropicalised aluminium for enhanced durability
  • Visual Display: Standard 90° Green OPEN for clear indication
  • Shaft: ¼" DD 316 stainless steel for corrosion resistance
  • Conduit Entries: Dual ¾" NPT for flexible installation options
  • O-Rings: Buna-N for effective sealing
View full details

FAQ's

What is the difference between a valve and an actuator?

A valve controls the flow of a fluid (such as water, gas, or steam), while an actuator is the device that operates the valve — automatically opening, closing, or positioning it. Actuators can be electric, pneumatic, or hydraulic, depending on the application and control requirements.

What types of actuators are available?

The main types of actuators are:

Pneumatic actuators – use compressed air for fast, reliable operation.

Electric actuators – use electrical power for precise control.

Hydraulic actuators – use fluid pressure for high-torque applications.

Each type offers unique advantages depending on the environment, media, and system control needs.

How do I choose the right actuator for my valve?

To select the correct actuator, consider:

Valve type and torque requirement

Power source available (air, electric, or hydraulic)

Operating environment (temperature, humidity, hazardous area)

Control signal type (on/off or modulating)

Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.

What are the main types of valves used in automation?

The most common valves in automated systems include:

Ball valves – for tight shutoff and quick operation.

Butterfly valves – for larger flow control with compact design.

Globe valves – for precise throttling and flow regulation.

Check valves – to prevent backflow.

Gate valves – for full bore flow isolation.

What’s the difference between a double-acting and spring-return actuator?

Double-acting actuators use air (or power) to both open and close the valve.


Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.

How often should valves and actuators be serviced?

Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.

This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
