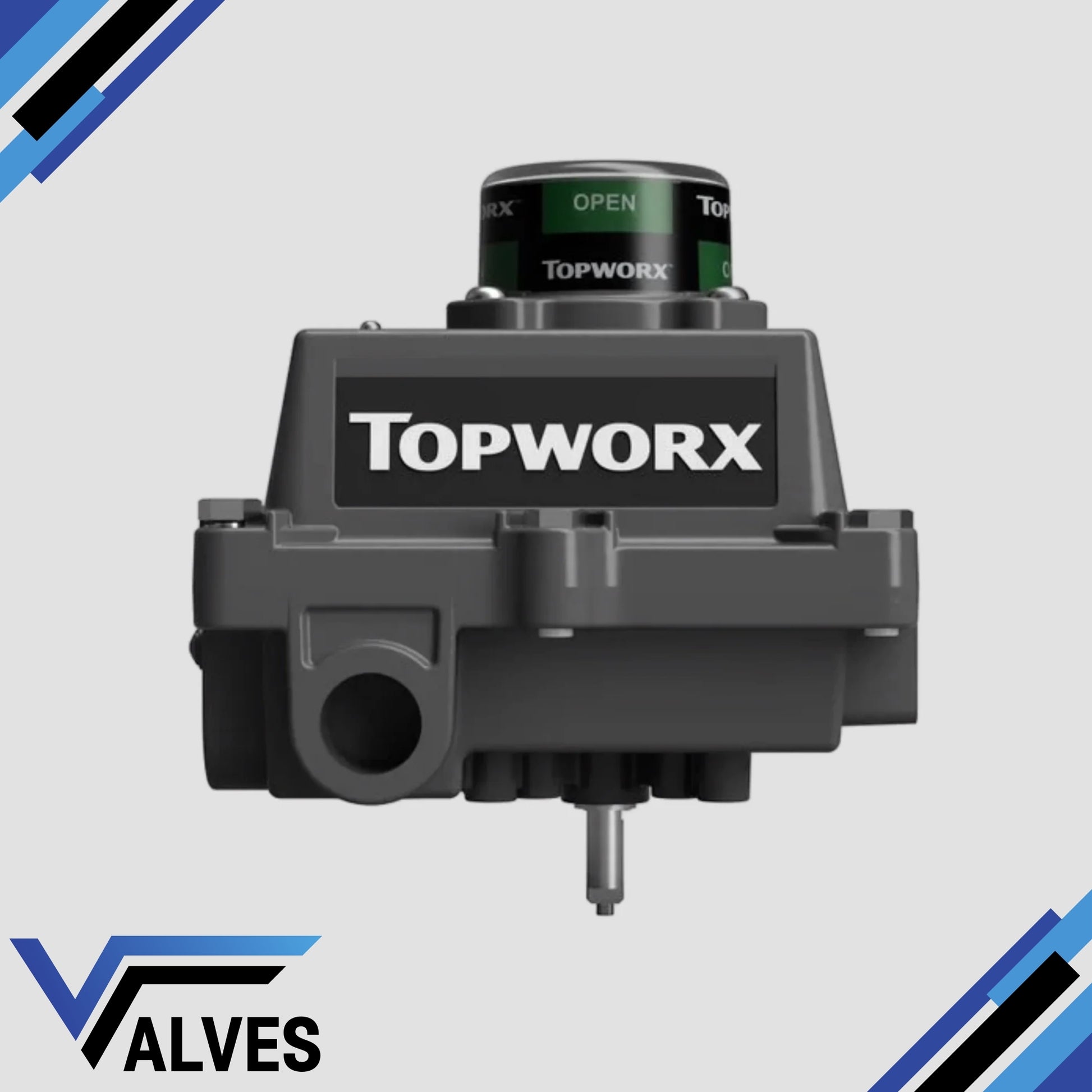

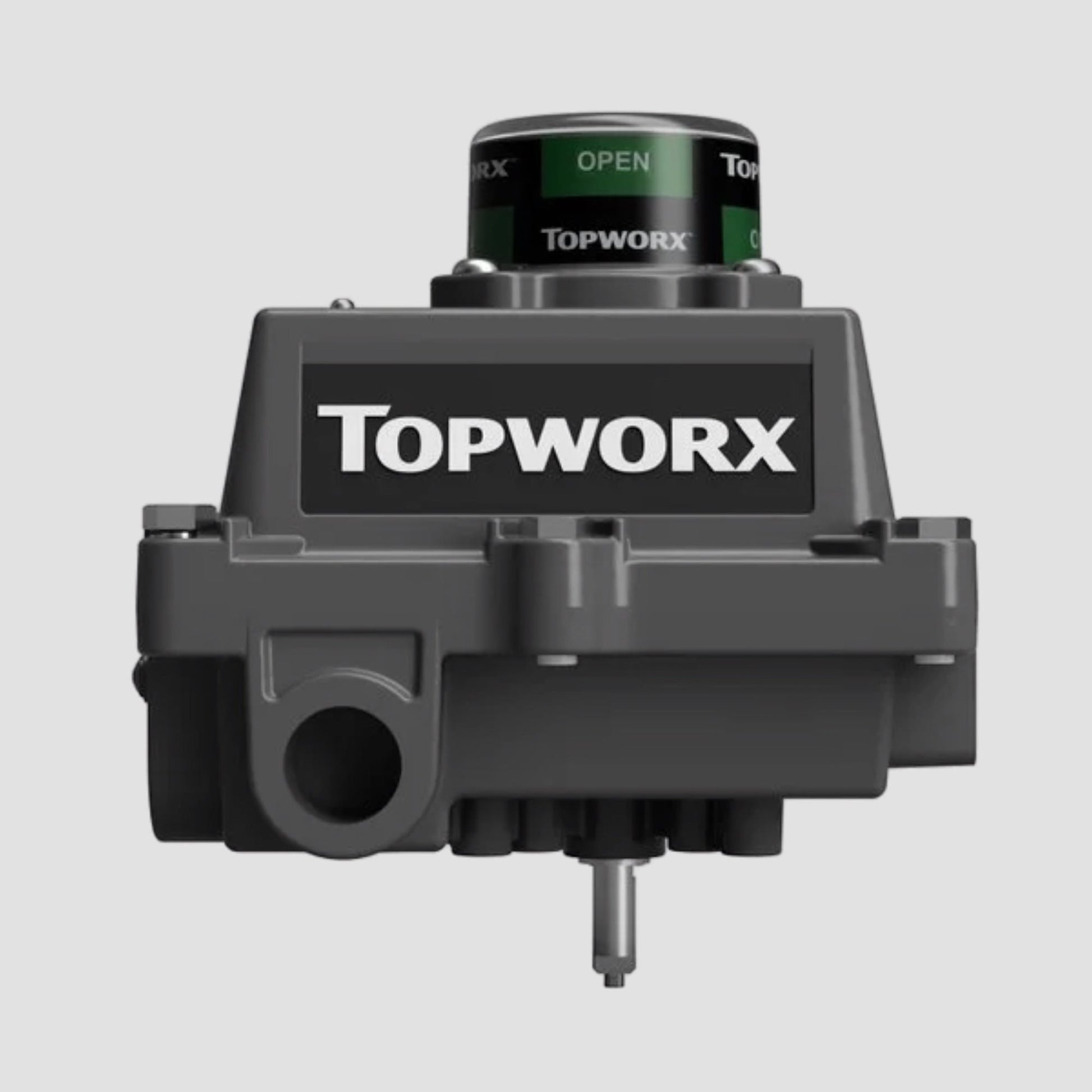

TopWorx Limit Switch Box DXP-00WGSMB Valve Monitor
TopWorx Limit Switch Box DXP-00WGSMB Valve Monitor
Couldn't load pickup availability
The TopWorx DXP-00WGSMB is a compact valve position monitoring unit designed for use on automated valve systems where clear, dependable feedback is essential. Rather than focusing purely on indication, this model is built to support operational confidence by confirming valve status directly at the actuator level.
Fitted to pneumatic actuators controlling ball valves and butterfly valves, the DXP-00WGSMB provides precise open and closed signalling that integrates seamlessly into wider control systems. Its construction is intended for continuous industrial use, offering reliable performance in environments where mechanical movement, ambient moisture, and day-to-day plant conditions are unavoidable.
The unit is designed to be installed and set without complication, making it suitable for both new automation projects and retrofit applications. Once in place, it delivers stable, repeatable feedback that helps operators maintain control, reduce uncertainty, and improve overall system reliability. Typical installations include process plants, utilities, energy facilities, and general industrial automation where accurate valve status indication is required.
Share
Enquire Online!
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
