TopWorx Limit Switch Box DXP-M20GNEB Valve Monitor
TopWorx Limit Switch Box DXP-M20GNEB Valve Monitor
Couldn't load pickup availability

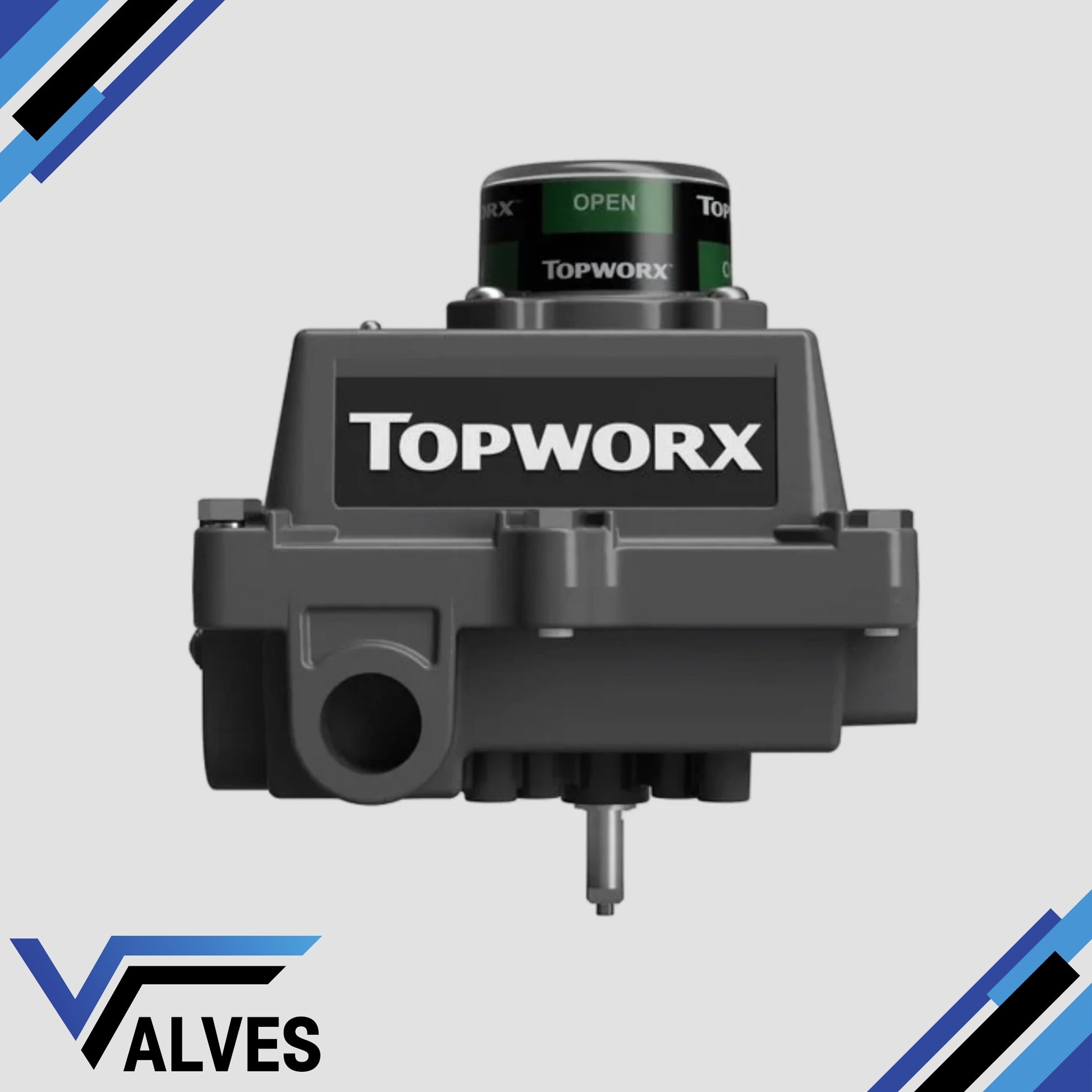

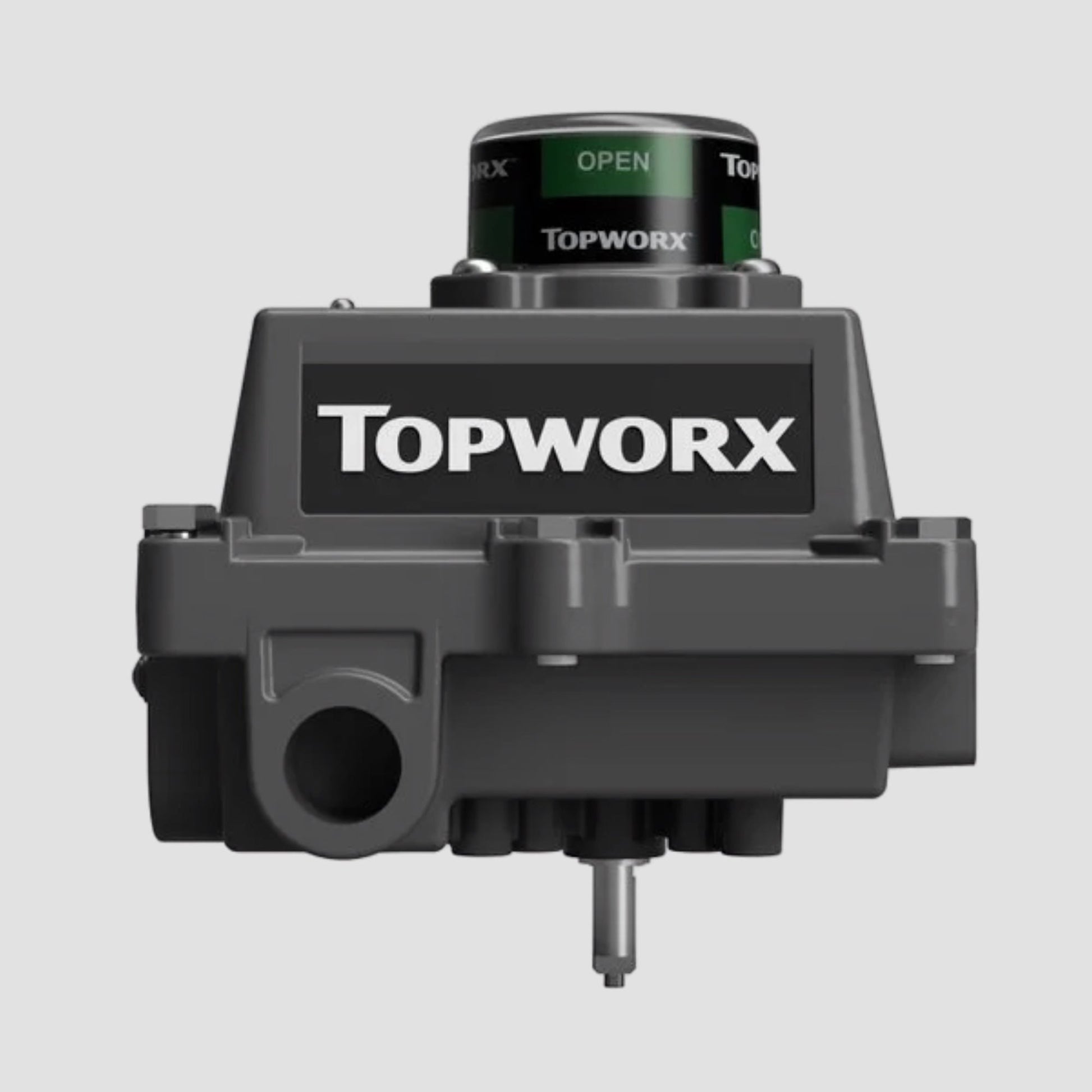

The TopWorx DXP-M20GNEB Limit Switch Box Valve Monitor is an advanced solution designed for industrial applications, offering precise and reliable position feedback. Its robust tropicalized aluminium enclosure ensures durability and long-lasting performance, ideal for harsh environments. Equipped with dual mechanical SPDT switches, it provides effective, intrinsically safe operation suitable for Zone 0 hazardous areas. The standard 90° visual indicator in green provides clear, easy-to-see OPEN/CLOSED status, ensuring quick visual verification.
This model is constructed with a NAMUR-compliant 316 stainless steel shaft and includes Buna-N O-rings for enhanced resistance to chemicals and environmental conditions. With two ¾" NPT conduit entries, it supports streamlined wiring installation. The DXP-M20GNEB comes without additional components like pilot devices, spool valves, or a manual override, providing a simplified and efficient monitoring setup.
Key Features:
- Enclosure: Tropicalised aluminium for enhanced durability
- Switch Type: Dual mechanical SPDT switches for reliable feedback
- Area Classification: Intrinsically safe, suitable for Zone 0 areas
- Visual Display: Standard 90° Green OPEN indicator
- Shaft Material: NAMUR 316 stainless steel for corrosion resistance
- Conduit Entries: Two ¾" NPT for easy installation
- Seals: Buna-N O-rings for chemical resistance
Share
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
