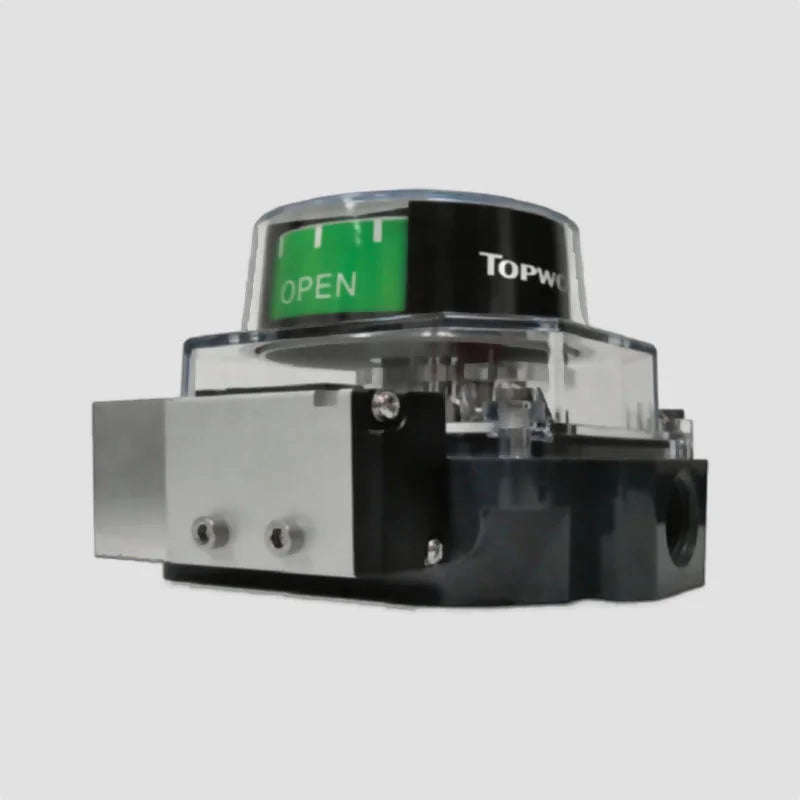

TopWorx Limit Switch Box TVA-E20BNCM Valve Monitor
TopWorx Limit Switch Box TVA-E20BNCM Valve Monitor
Couldn't load pickup availability
The TVA-E20BNCM from TopWorx is part of the TVA series of modular valve position monitors designed for cost-effective general-industrial or intrinsically-safe feedback applications. Housing a high-impact resin enclosure, this model provides both visual valve-position indication and sensor‐based feedback for quarter-turn actuated valves.
Key Features
Resin Composite Enclosure – Lightweight, durable housing suitable for direct-mount on actuators.
Dual Inductive NAMUR Sensors (E2 configuration) – Provides reliable non-contact feedback of valve open/closed position.
Intrinsically Safe (Area Class 0) – Approved for use in hazardous environments (Zone 0/Zone 1) when correctly specified.
Visual Indicator (Black = OPEN) – Clear on-site confirmation of valve status via colour display.
NAMUR Shaft Interface – Simplifies mounting to quarter-turn valve actuators with NAMUR mounting pad.
M20 Conduit Entries – Suitable for standard metric wiring in industrial installations.
Share
Enquire Online!
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
