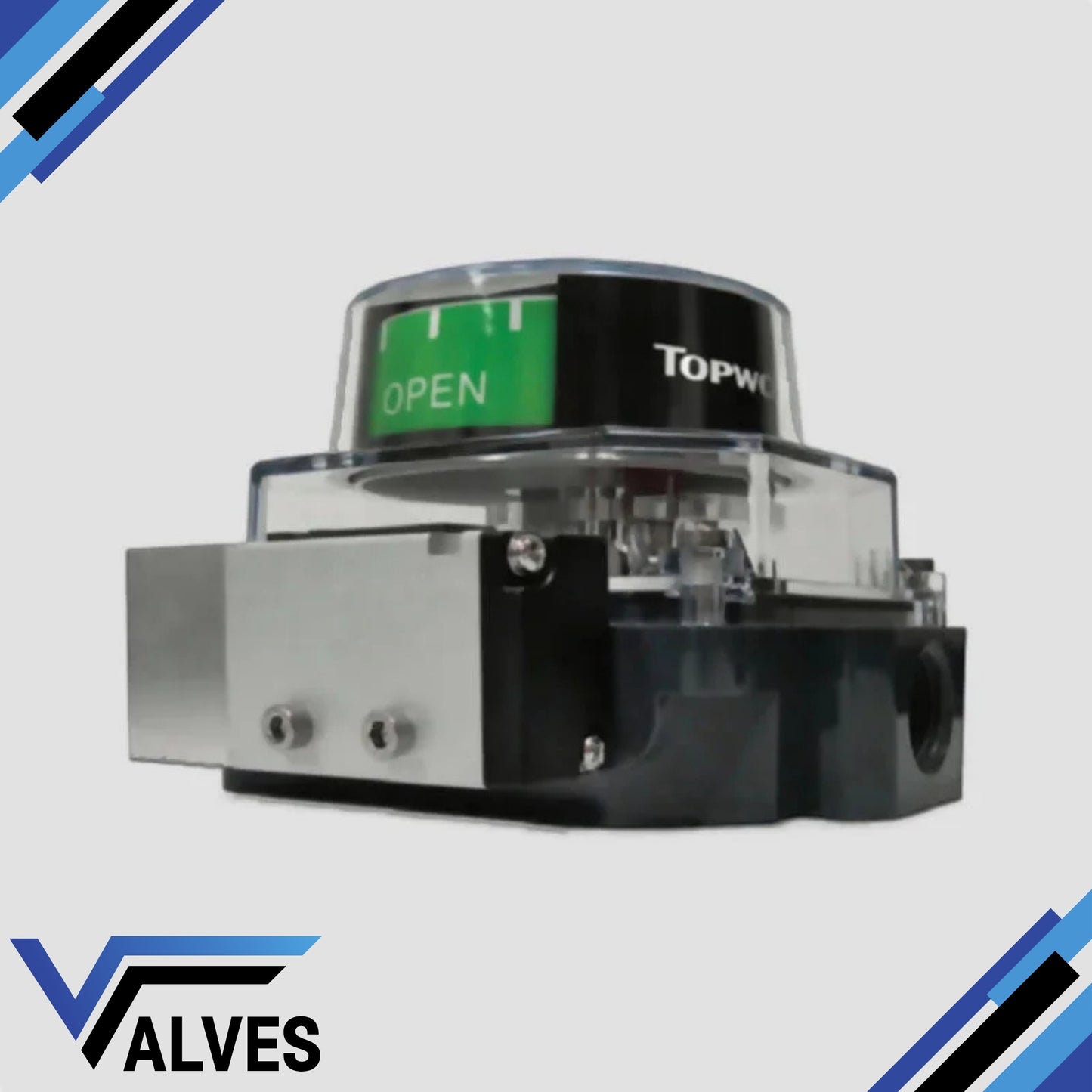

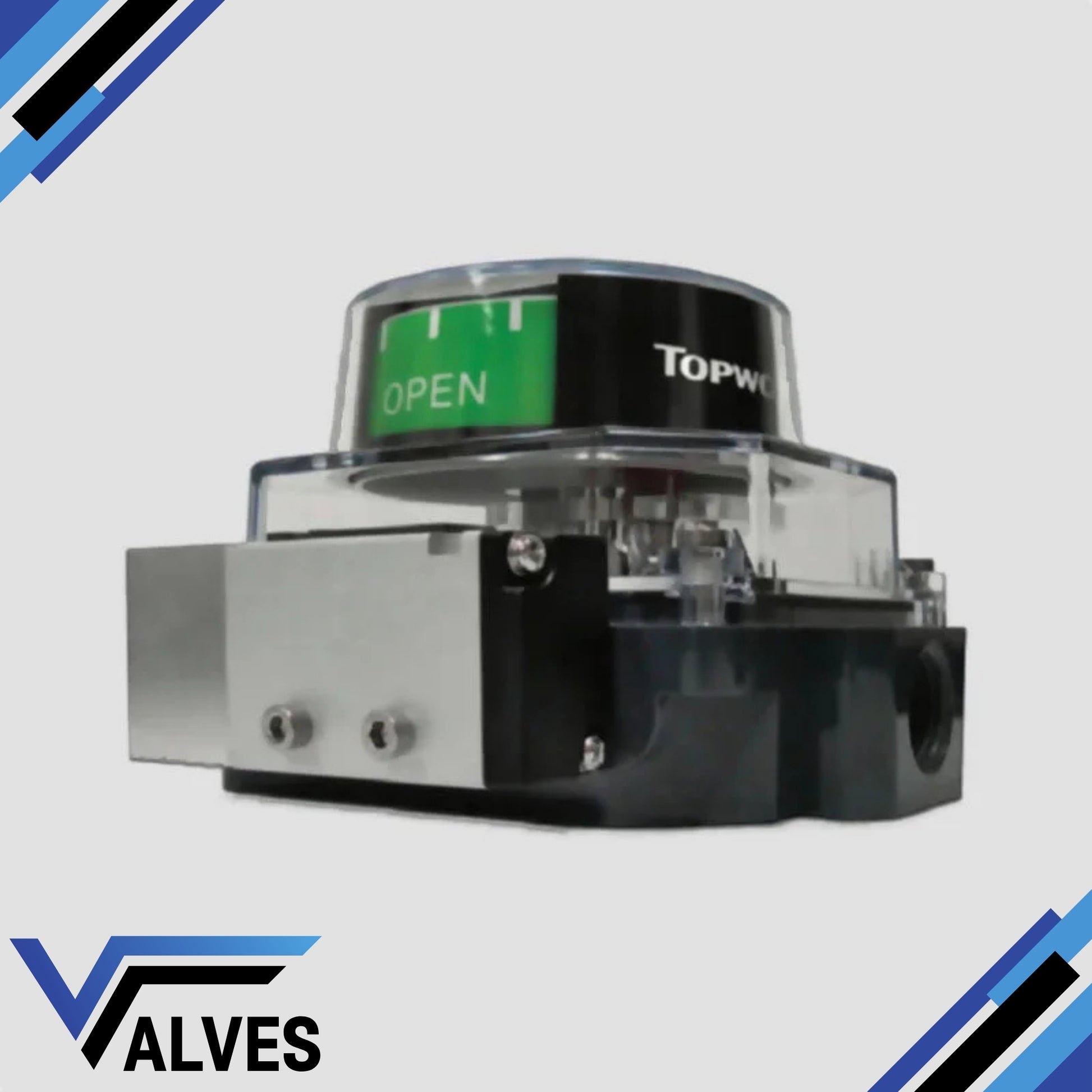

TopWorx Limit Switch Box TVA-E20GNCM Valve Monitor
TopWorx Limit Switch Box TVA-E20GNCM Valve Monitor
Couldn't load pickup availability

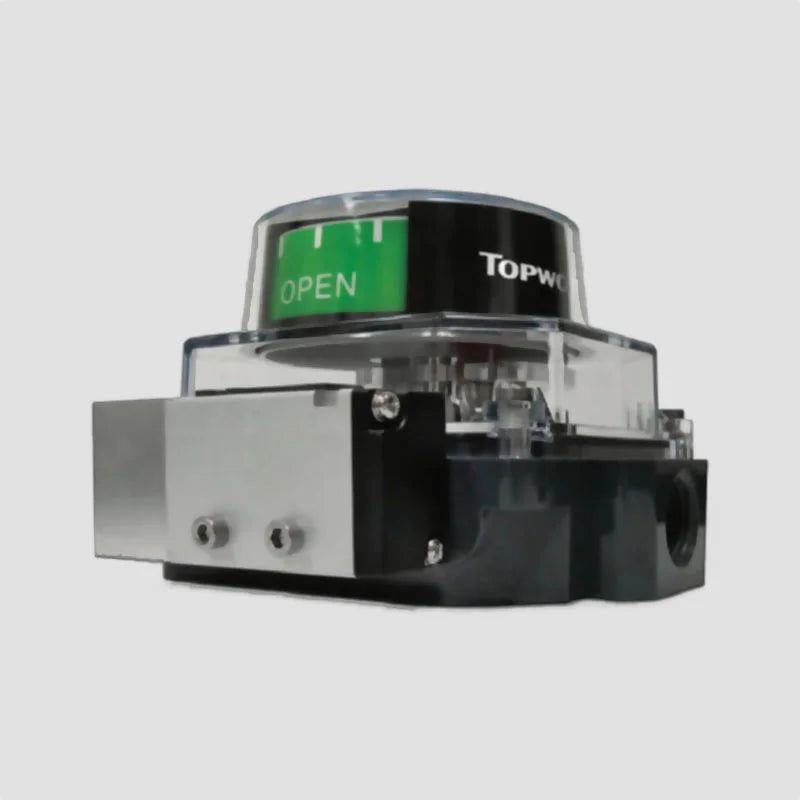

The TopWorx TVA-E20GNCM is a compact, intrinsically safe valve position monitor built for performance, reliability, and simplicity. Designed within the TVA Series of modular enclosures, this unit delivers precise non-contact feedback through dual NAMUR inductive sensors, while its rugged resin housing ensures protection against corrosion, vibration, and impact.
Engineered to withstand harsh process environments, the TVA-E20GNCM provides both visual and electronic position feedback — making it the perfect solution for safe-area and hazardous-area control systems alike.
Key Features
Dual Inductive NAMUR Sensors (E2) – P+F NJ2-V3-N sensors provide reliable, non-contact open/close feedback.
Intrinsically Safe (Area 0) – Certified for hazardous zones where electrical safety is critical.
High-visibility 90° Indicator (Green = Open / Red = Closed) – Clear visual confirmation of valve position.
NAMUR 316 Stainless Shaft Interface – Direct actuator coupling with long-term mechanical integrity.
Composite Resin Enclosure (TVA Series) – Corrosion-resistant, lightweight, and built to last.
M20 Conduit Entries – Dual resin wiring ports for clean, simple installation.
Silicone O-ring Seals – Enhance ingress protection and reliability in humid or dusty conditions.
Modular Design – Compatible with a full range of TopWorx bus, sensor, and display configurations.
Share
Enquire Online!
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
