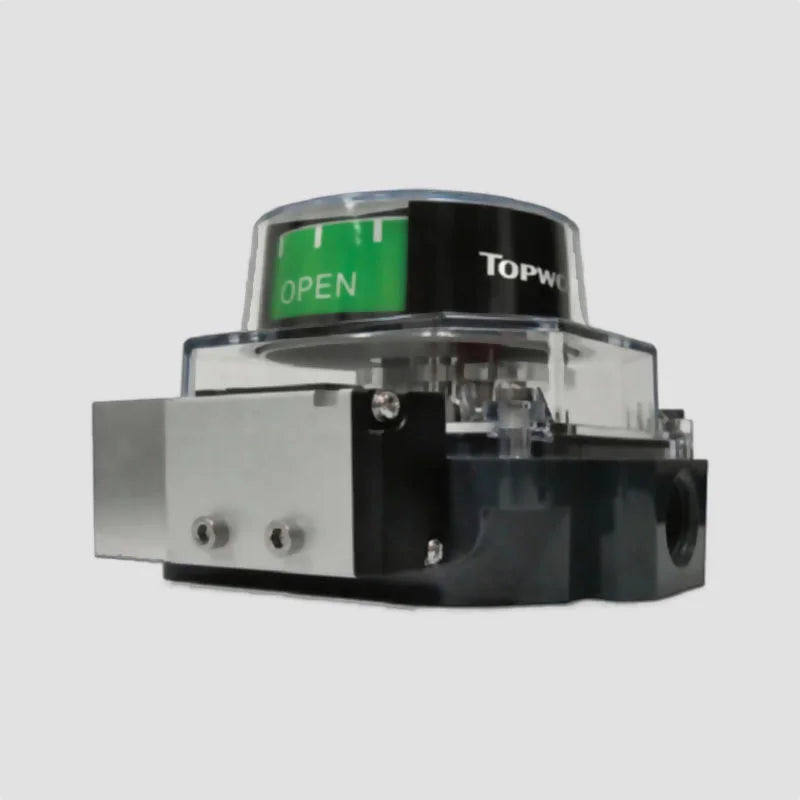

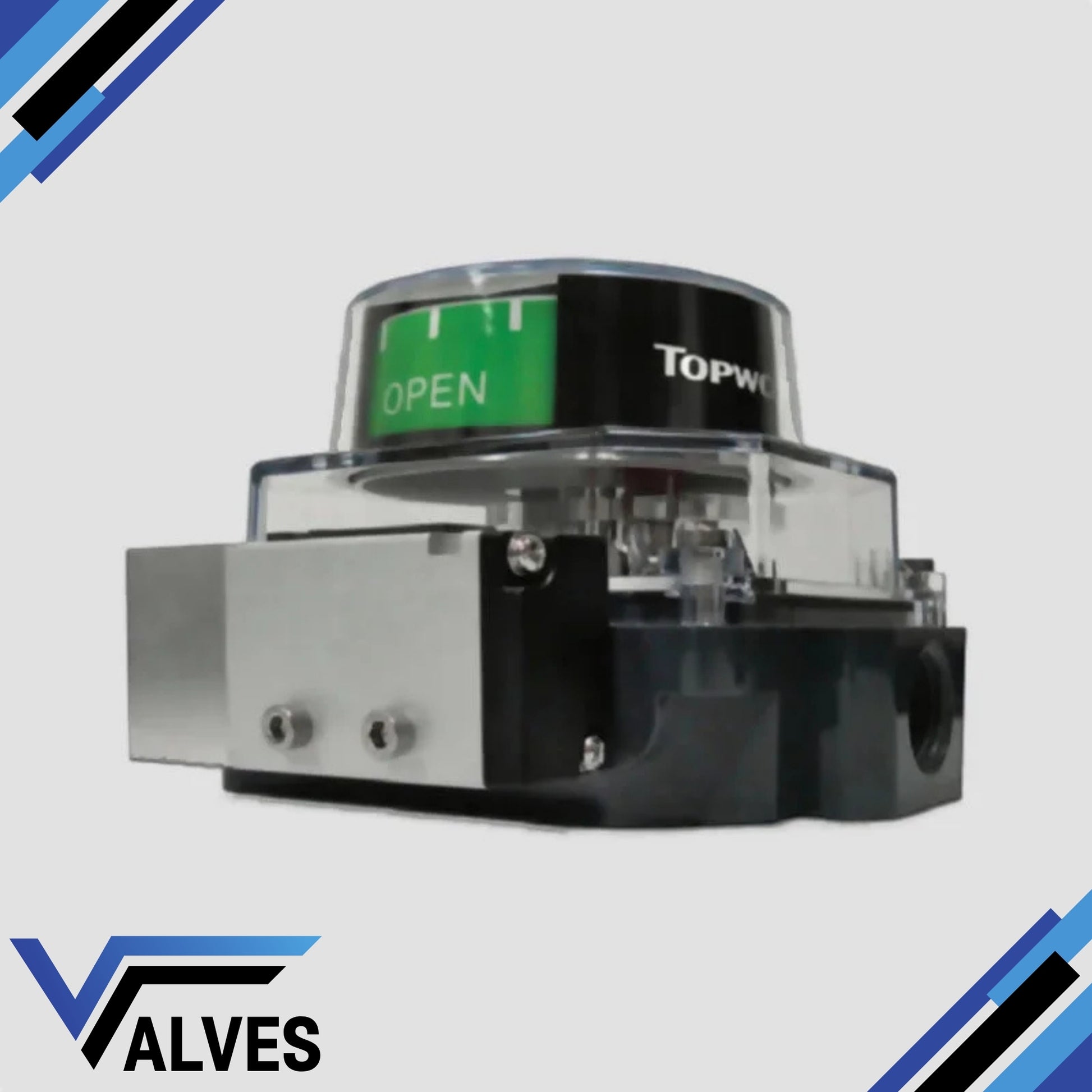

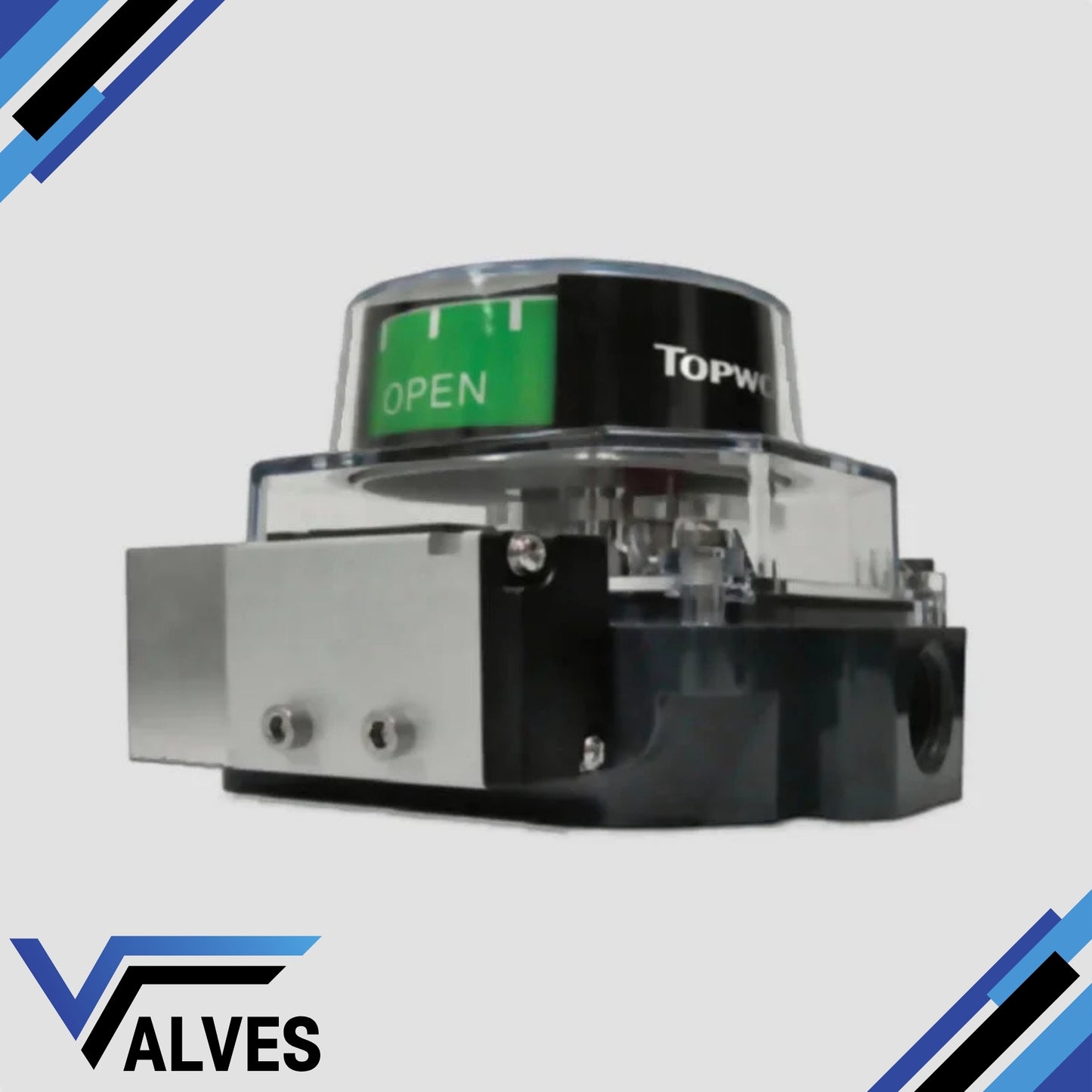

TopWorx Limit Switch Box TVA-M20GNAM Valve Monitor
TopWorx Limit Switch Box TVA-M20GNAM Valve Monitor
Couldn't load pickup availability
The TopWorx TVA-M20GNAM Limit Switch Box is part of the TVA series of modular valve position monitors, engineered for reliable visual and electrical valve position feedback in industrial environments. Designed with a durable composite resin enclosure, the TVA-M20GNAM provides a compact and cost-effective solution for safe-area applications where explosion-proof certification is not required.
Key Features
High-strength composite resin enclosure designed for corrosion resistance and long-term reliability.
Two non-contact proximity sensors for precise and durable position feedback.
90° Green/Red visual indicator for quick valve position verification.
NAMUR stainless-steel shaft for direct actuator mounting compatibility.
Dual ½″ NPT conduit entries for simple wiring integration.
Silicone O-rings ensuring ingress protection against moisture and dust.
Modular TVA series design supporting a range of sensor, indicator, and wiring configurations.
Safe-area classification reduces installation complexity and cost for non-hazardous environments.
Share
Enquire Online!
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
