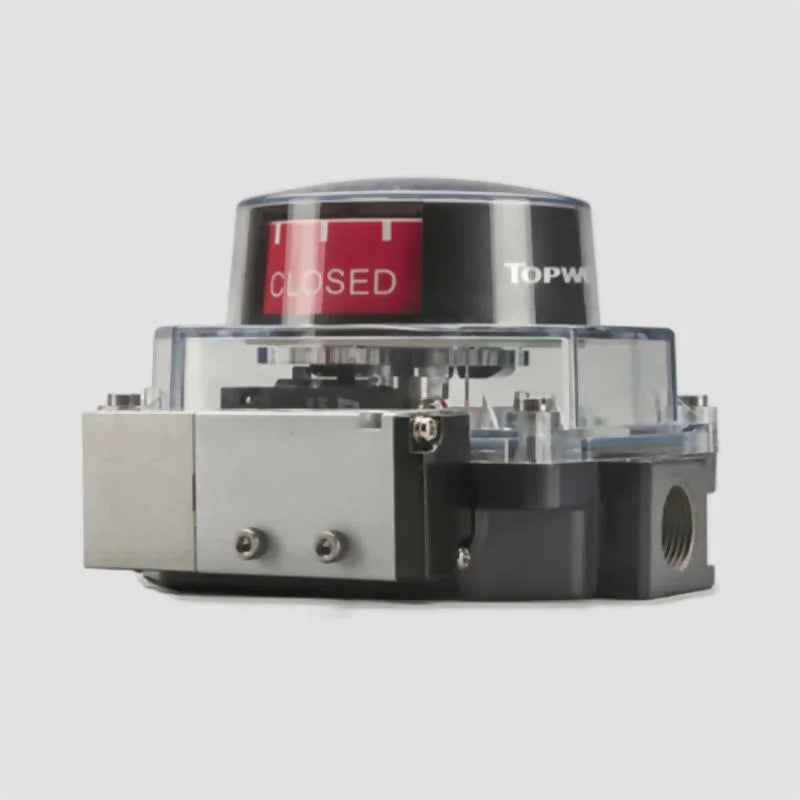

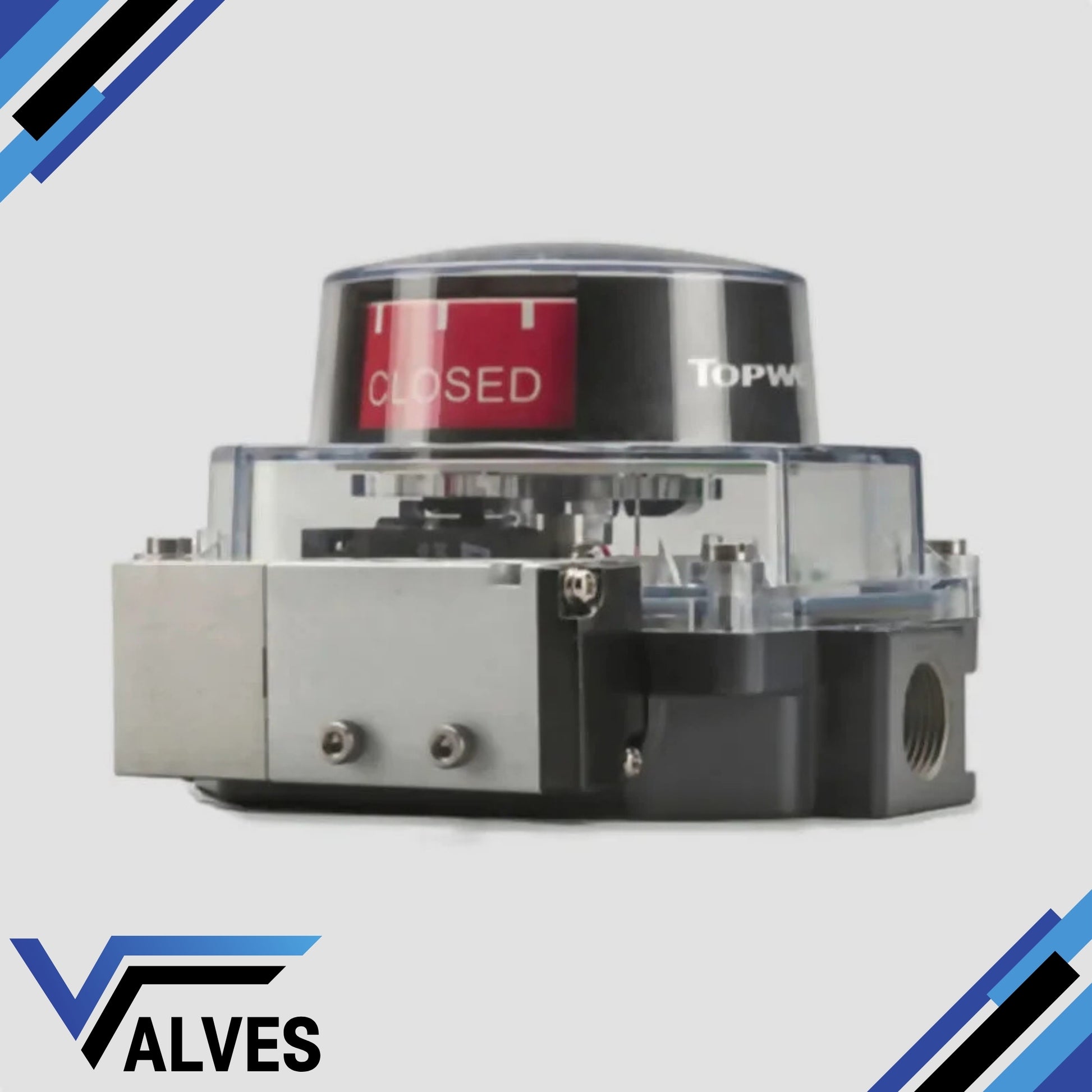

TopWorx Limit Switch Box TVF-E2WGNPM Valve Monitor
TopWorx Limit Switch Box TVF-E2WGNPM Valve Monitor
Couldn't load pickup availability
This switch box offers robust visual indication plus inductive sensor feedback for quarter-turn actuated valves (ball, butterfly, plug) in general-industrial settings, especially where explosion/hazardous-area certification is not required.
Key Features
Durable tropicalised aluminium base with a clear resin lid — optimized for visibility and industrial durability.
Inductive NAMUR sensor module (E2) providing wear-free open/closed feedback, recommended for automated valve systems.
Standard colour visual indicator (Green/Open, Red/Closed) for rapid onsite verification.
NAMUR stainless-steel shaft interface enables direct coupling with standard quarter-turn actuators using NAMUR drive interface.
Modular design within the TVF series — allowing variations in sensor/bus types, visual indicators, conduit entries, and mounting interfaces.
Share
Enquire Online!
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
