TopWorx Limit Switch Box TVF-M2WGNPM861206250 Valve Monitor
TopWorx Limit Switch Box TVF-M2WGNPM861206250 Valve Monitor
Couldn't load pickup availability

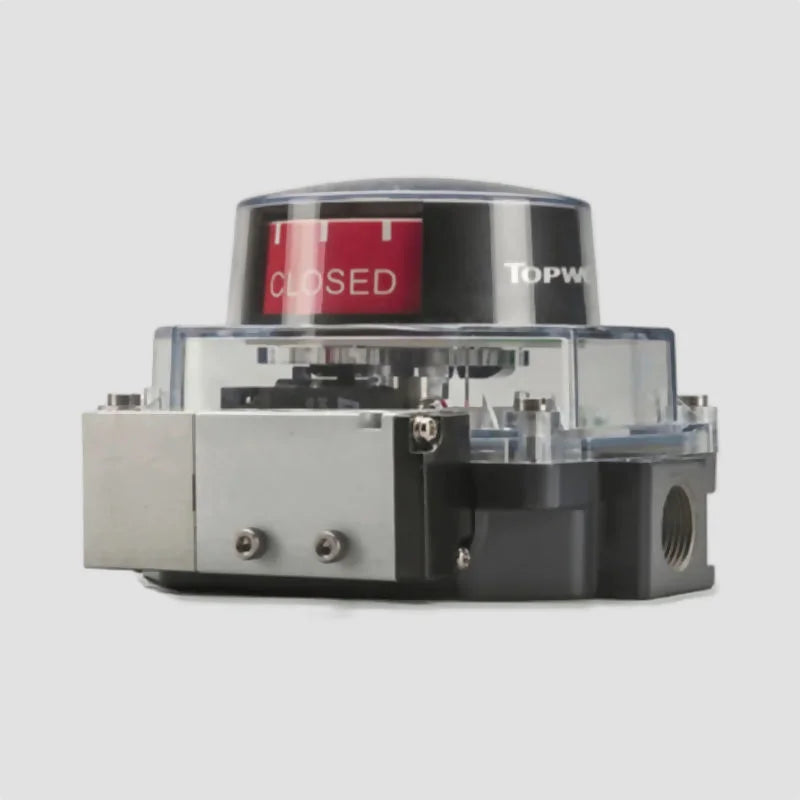

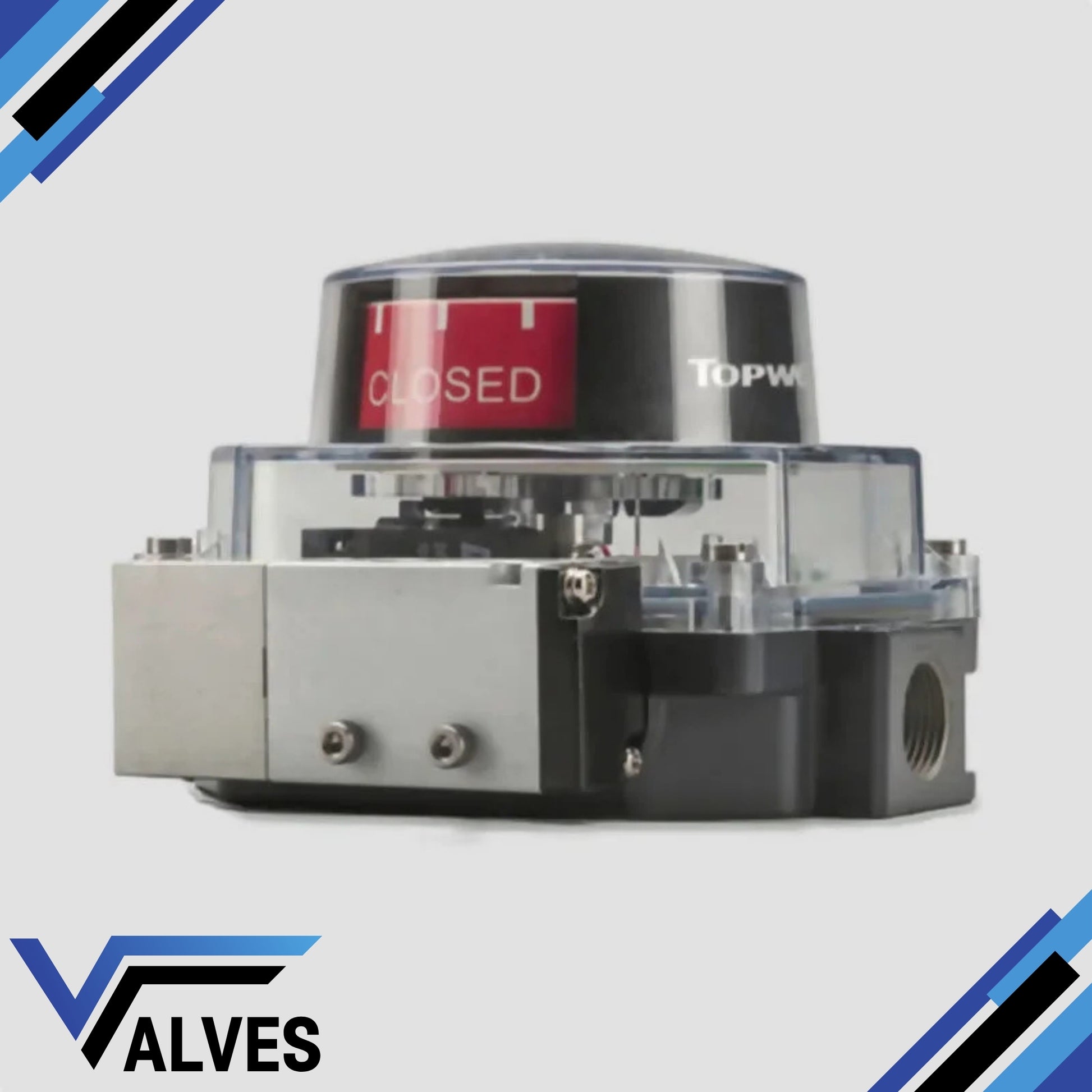

The TopWorx TVF-M2WGNPM861206250 is a robust, general-purpose valve-position monitor from the TVF T-Series, designed for direct mounting on quarter-turn actuators using a NAMUR stainless-steel shaft interface. Built with a tropicalised aluminium housing and a clear resin lid, it provides strong environmental resistance while keeping the internal switching mechanism and 90° indicator fully visible for operator inspection.
This model uses dual mechanical SPDT switches (M2) to provide accurate, repeatable open/closed feedback suitable for a wide range of safe-area industrial applications. The W-series 90° White/Black visual indicator ensures crisp, high-contrast valve-position visibility across varied lighting and process environments. The 861206250 configuration defines a specific terminal and wiring layout, paired with the NPM variant’s ½″ NPT conduit entries, sealed with silicone O-rings to guarantee secure and protected industrial wiring.
Share
Enquire Online!
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
