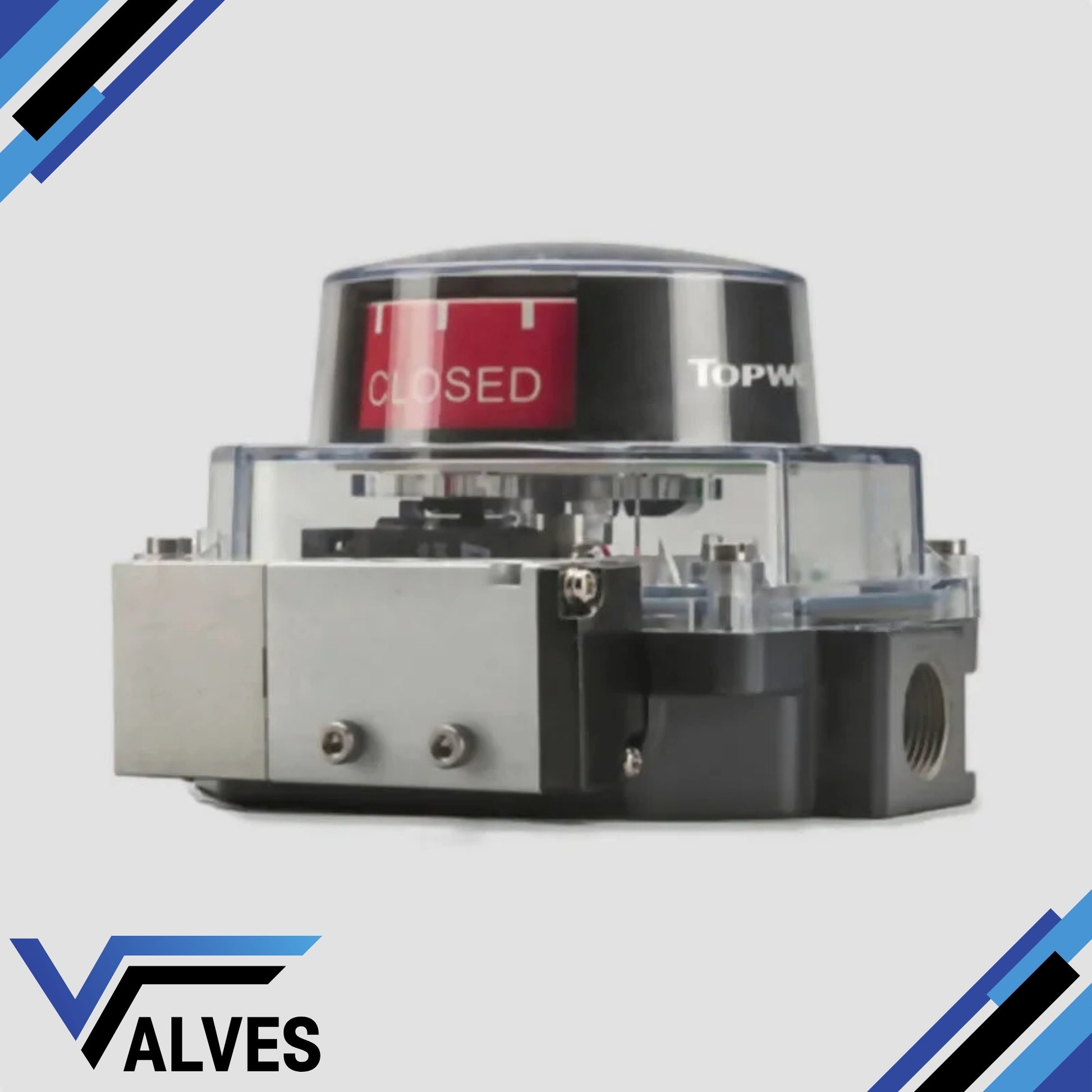

TopWorx Limit Switch Box TVF-M40TNPM0000B Valve Monitor
TopWorx Limit Switch Box TVF-M40TNPM0000B Valve Monitor
Couldn't load pickup availability

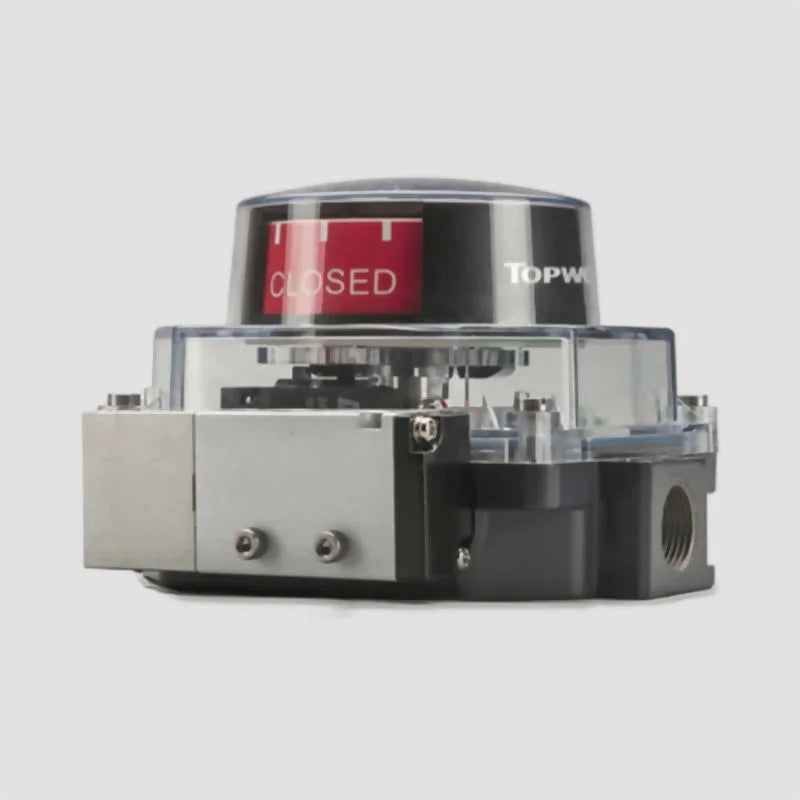

The TopWorx TVF-M40TNPM0000B Valve Monitor is a compact, durable, and highly reliable limit switch box designed for monitoring the open/closed position of quarter-turn valves. Built within the TopWorx T-Series, it features a tough tropicalised aluminium base paired with a clear resin lid, giving excellent corrosion resistance while allowing quick visual confirmation of valve status.
Engineered for non-incendive and intrinsically safe environments, the TVF-M40TNPM0000B supports a wide range of switch and sensor options. Its modular internal layout, robust seal design, and direct-mount capability make it ideal for chemical plants, water treatment facilities, marine applications, and general industrial valve automation.
Key Features
Tropicalised aluminium base with clear resin lid for superior durability and immediate visual status checks.
Non-incendive / intrinsically safe design, suitable for hazardous and general-purpose areas depending on configuration.
Configurable internal components, including mechanical switches, inductive NAMUR sensors, or bus/network options.
Standard 90° open/closed visual indicator using a high-clarity display for fast on-site inspection.
Direct-mount NAMUR interface for seamless installation onto pneumatic or electric actuators.
High ingress protection (IP66/67) ensuring protection against dust, water, and harsh weather conditions.
Share
Enquire Online!
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
