Wras Valves

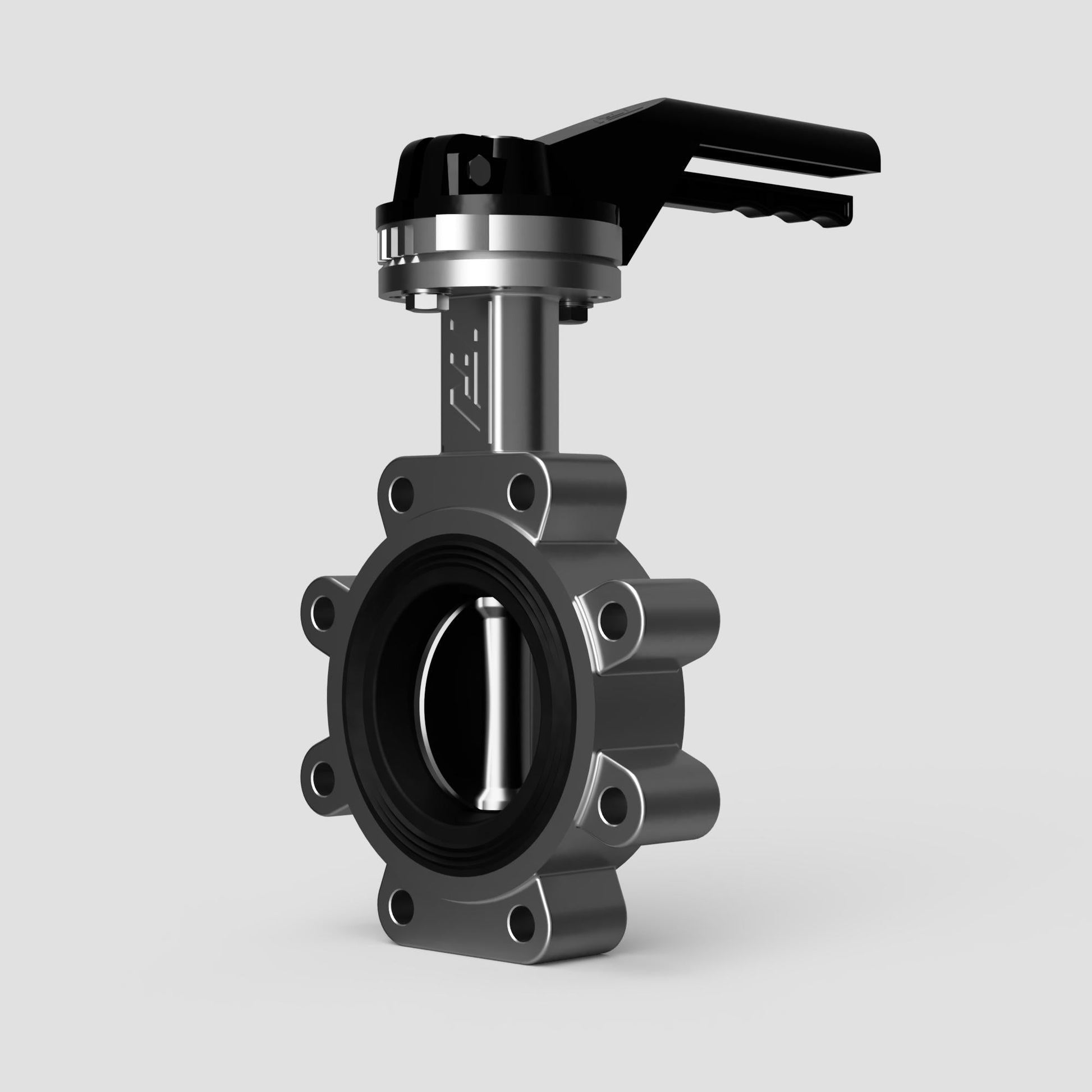

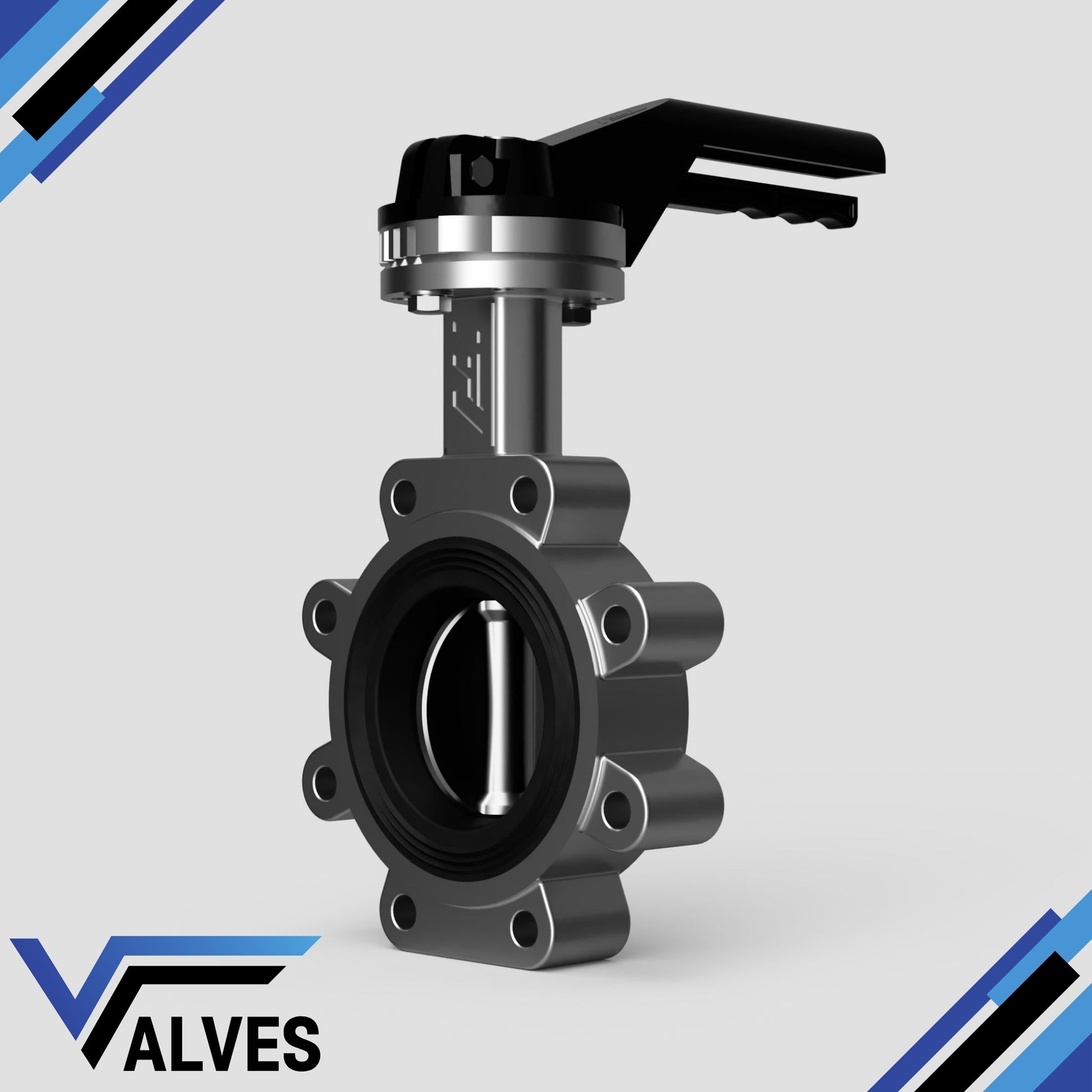

TTV Stainless Steel Lugged Butterfly Valves

TTV Stainless Steel Lugged Butterfly Valves

£209.99 GBP
£209.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Pressure Rating
Size

Now Fully WRAS Approved – Valve & EPDM Seat

The TTV Stainless Steel Lugged Butterfly Valves are now fully WRAS approved, offering certified compliance for use with potable water systems. Built for high-performance flow control in aggressive or hygienic environments, these valves are constructed from high-grade stainless steel for excellent corrosion resistance and long-term durability. Ideal for applications in water treatment, food processing, and light chemical industries, the valves combine robust construction with safe and certified sealing.

The lugged body design enables secure flange-to-flange installation and supports end-of-line service. With bubble-tight shut-off, low operating torque, and ISO 5211 mounting for actuation, this valve provides efficient and dependable performance across a wide range of applications.

Key Features:

- WRAS Approved Valve & EPDM Seat – Certified for use with potable water, ensuring full regulatory compliance
- Stainless Steel Body & Disc – Exceptional corrosion resistance and durability
- Lugged Design – Allows for dead-end service and strong flange mounting
- Bubble-Tight Shut-Off – Ensures reliable sealing performance
- ISO 5211 Mounting Pad – Easy fitment for electric or pneumatic actuators
- Low Operating Torque – Supports energy-efficient actuation
- Replaceable Seat Design – Simplifies maintenance and reduces downtime

A reliable, WRAS-approved solution for demanding environments requiring stainless steel performance and certified potable water safety.

View full details

FAQ's

What is the difference between a valve and an actuator?

A valve controls the flow of a fluid (such as water, gas, or steam), while an actuator is the device that operates the valve — automatically opening, closing, or positioning it. Actuators can be electric, pneumatic, or hydraulic, depending on the application and control requirements.

What types of actuators are available?

The main types of actuators are:

Pneumatic actuators – use compressed air for fast, reliable operation.

Electric actuators – use electrical power for precise control.

Hydraulic actuators – use fluid pressure for high-torque applications.

Each type offers unique advantages depending on the environment, media, and system control needs.

How do I choose the right actuator for my valve?

To select the correct actuator, consider:

Valve type and torque requirement

Power source available (air, electric, or hydraulic)

Operating environment (temperature, humidity, hazardous area)

Control signal type (on/off or modulating)

Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.

What are the main types of valves used in automation?

The most common valves in automated systems include:

Ball valves – for tight shutoff and quick operation.

Butterfly valves – for larger flow control with compact design.

Globe valves – for precise throttling and flow regulation.

Check valves – to prevent backflow.

Gate valves – for full bore flow isolation.

What’s the difference between a double-acting and spring-return actuator?

Double-acting actuators use air (or power) to both open and close the valve.


Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.

How often should valves and actuators be serviced?

Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.

This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
