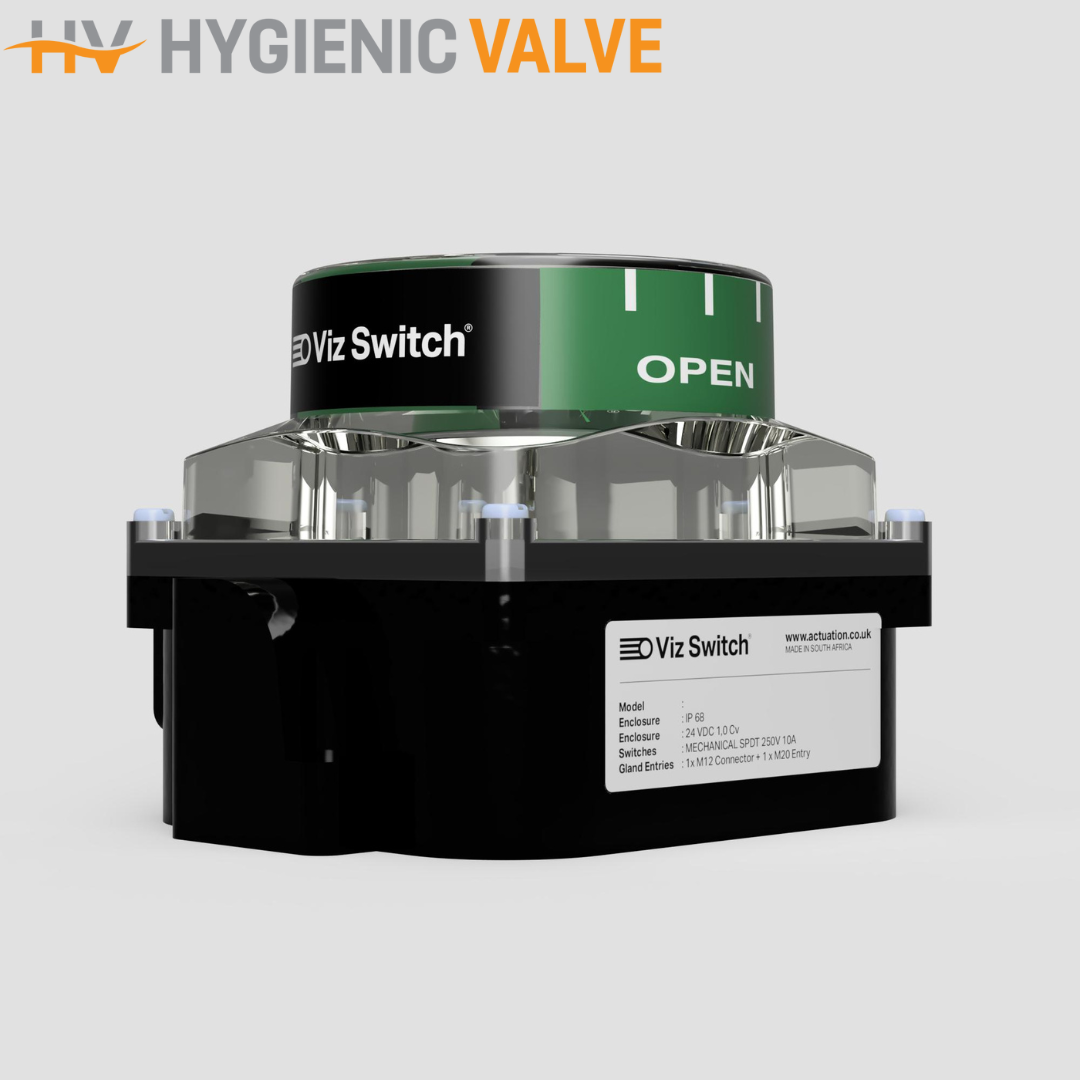

VIZ-001 Mechanical Limit Switchbox – SPDT, 250V 10A, IP68, 2 x M20 Entries
VIZ-001 Mechanical Limit Switchbox – SPDT, 250V 10A, IP68, 2 x M20 Entries
Couldn't load pickup availability
The VIZ-001 Mechanical Limit Switchbox is a rugged and reliable position feedback device for valve automation. Featuring a Single Pole Double Throw (SPDT) microswitch rated at 250V AC, 10A, it provides accurate open/close position signalling for electrically or pneumatically actuated valves.
Designed with an IP68-rated enclosure, this switchbox offers superior protection against water, dust, and harsh industrial environments. It includes 2 x M20 cable entries for flexible wiring and integration, making it suitable for a wide range of on-site installations.
With clear mechanical indication and a compact, durable housing, the VIZ-001 is ideal for process control systems requiring dependable valve monitoring in demanding conditions.
Key Features:
- SPDT switch rated for 250V, 10A – suitable for high-current applications
- IP68 ingress protection for harsh and wet environments
- 2 x M20 cable entries for flexible electrical connectivity
- Mechanical visual indicator for clear open/close status
- Ideal for use on actuated ball and butterfly valves
Share
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
