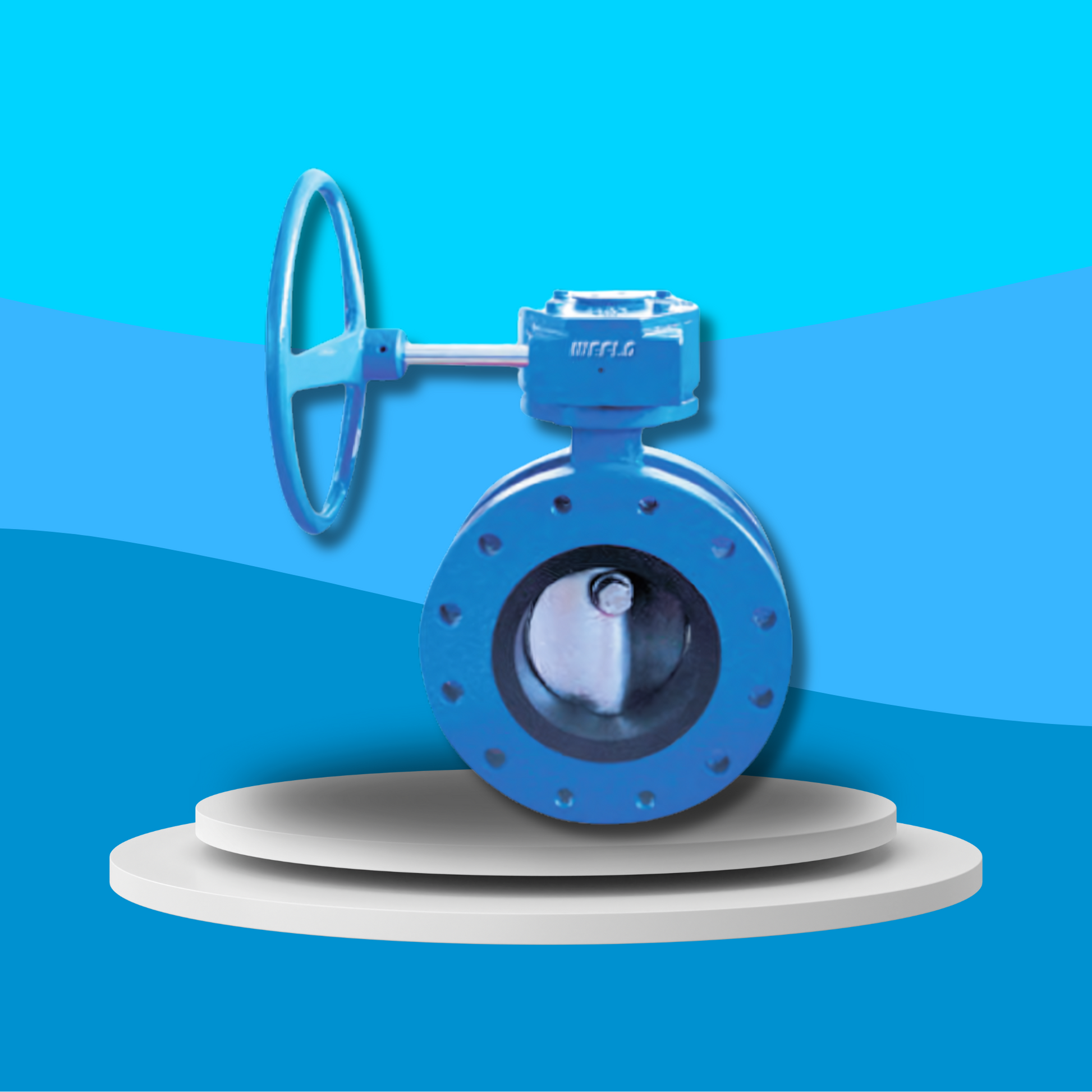

WRAS Approved Double Flanged Butterfly Valve - EPDM Liner - PN16

WRAS Approved Double Flanged Butterfly Valve - EPDM Liner - PN16

£289.99 GBP
£289.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Valve Size

WRAS Certified

Introducing the WRAS Approved Double Flanged Butterfly Valve with EPDM Liner - PN16, designed for superior performance and reliability in fluid control systems. This valve features an epoxy-coated ductile iron body and disc, combined with a high-quality EPDM liner for exceptional durability and sealing capabilities. Certified to WRAS standards, this valve ensures water safety and quality, making it an ideal choice for various applications in residential, commercial, and industrial settings.

Key Features:

  • WRAS Approved: Certified to meet stringent WRAS standards for water safety and quality.
  • Robust Construction: Made from epoxy-coated ductile iron for enhanced durability and corrosion resistance.
  • EPDM Liner: Provides excellent sealing capabilities and resistance to wear.
  • Direct Mount: Designed for direct mount following ISO 5211 standards, ensuring ease of installation.
  • Gearbox Operation: Operated via a reliable gearbox, suitable for all valve sizes.
  • Wide Temperature Range: Capable of handling temperatures from -10°C to 120°C.
  • PN16 Rated: Rated for PN16 pressure conditions, suitable for a wide range of applications.
  • Flange Compatibility: Specifically designed to fit PN16 flanges for easy integration.

Specifications:

  • Body Material: Ductile Iron with Epoxy Coating
  • Disc Material: Ductile Iron
  • Liner Material: EPDM
  • Pressure Rating: PN16
  • Temperature Range: -10°C to 120°C
  • Connection Type: Double Flanged
  • Operation: Gearbox Operated
  • Certification: WRAS Approved
View full details

FAQ's

What is the difference between a valve and an actuator?

A valve controls the flow of a fluid (such as water, gas, or steam), while an actuator is the device that operates the valve — automatically opening, closing, or positioning it. Actuators can be electric, pneumatic, or hydraulic, depending on the application and control requirements.

What types of actuators are available?

The main types of actuators are:

Pneumatic actuators – use compressed air for fast, reliable operation.

Electric actuators – use electrical power for precise control.

Hydraulic actuators – use fluid pressure for high-torque applications.

Each type offers unique advantages depending on the environment, media, and system control needs.

How do I choose the right actuator for my valve?

To select the correct actuator, consider:

Valve type and torque requirement

Power source available (air, electric, or hydraulic)

Operating environment (temperature, humidity, hazardous area)

Control signal type (on/off or modulating)

Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.

What are the main types of valves used in automation?

The most common valves in automated systems include:

Ball valves – for tight shutoff and quick operation.

Butterfly valves – for larger flow control with compact design.

Globe valves – for precise throttling and flow regulation.

Check valves – to prevent backflow.

Gate valves – for full bore flow isolation.

What’s the difference between a double-acting and spring-return actuator?

Double-acting actuators use air (or power) to both open and close the valve.


Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.

How often should valves and actuators be serviced?

Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.

This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
