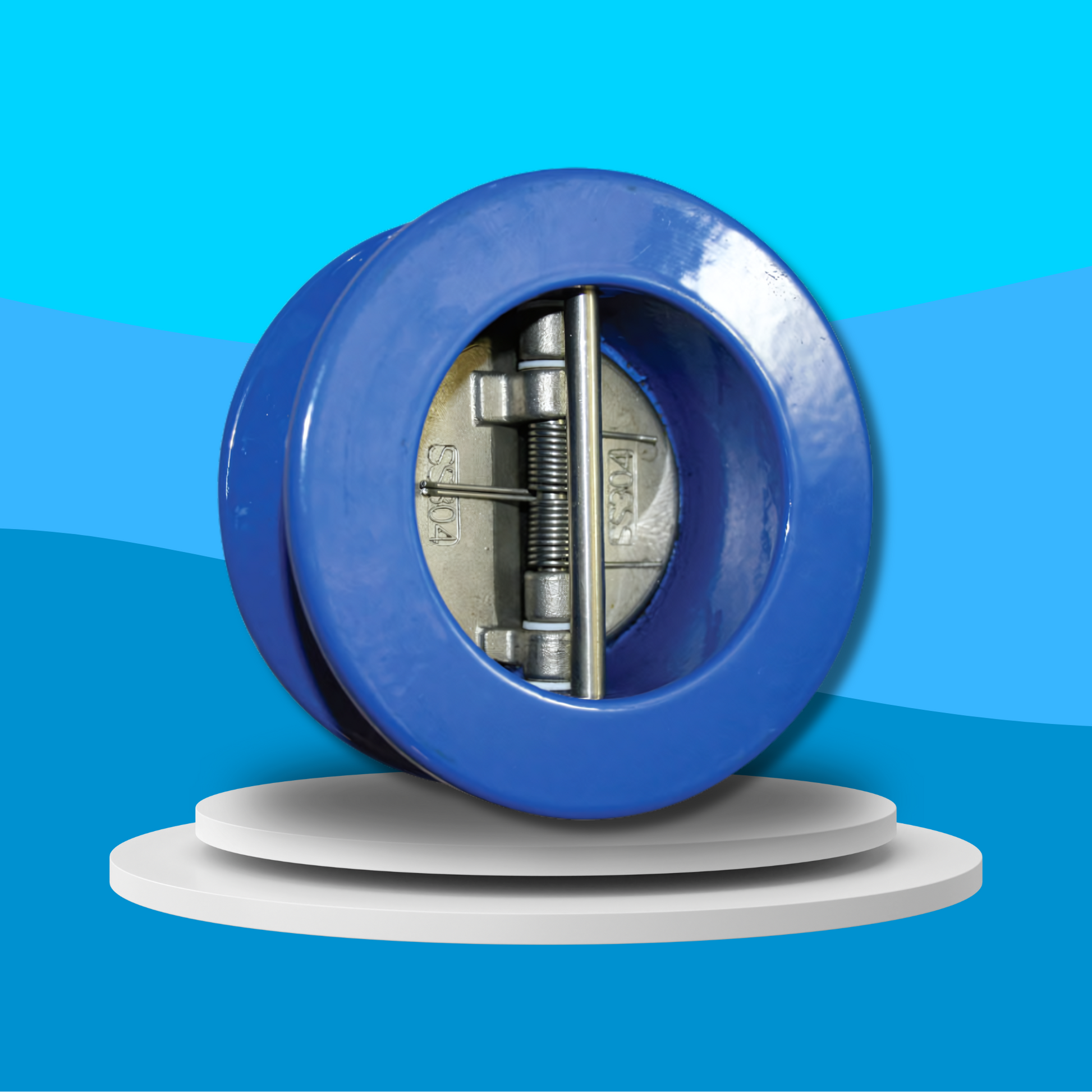

WRAS Approved Dual Plate Check Valve with EPDM Seat
WRAS Approved Dual Plate Check Valve with EPDM Seat
Couldn't load pickup availability
WRAS Certified
Introducing the WRAS Approved Dual Plate Check Valve with EPDM Seat, engineered to deliver exceptional performance and reliability in fluid control systems. These valves are meticulously crafted with an epoxy-coated cast iron body and stainless steel components, ensuring superior durability and resistance to corrosion. The EPDM seat provides excellent sealing capabilities, making these valves ideal for a wide range of applications in residential, commercial, and industrial settings.
Key Features:
- WRAS Approved: Certified to comply with stringent WRAS standards for water safety and quality.
- Robust Construction: Made from epoxy-coated cast iron with stainless steel plates and springs for enhanced durability and corrosion resistance.
- High-Quality Seal: Features an EPDM seat for excellent sealing performance.
- Wide Application Range: Suitable for use in various water systems, including residential, commercial, and industrial applications.
- Temperature Tolerance: Designed to perform reliably in temperatures ranging from -10°C to 120°C.
- Easy Integration: Compatible with PN16 flanges for seamless integration into existing fluid control systems.
Specifications:
- Materials:
- Body: Cast Iron EN-JL1040
- Disc: Stainless Steel 304
- Seat: EPDM
- Hinge Pin: Stainless Steel 420
- Stop Pin: Stainless Steel 420
- Pin Retainer: Stainless Steel 304
- Spring: Stainless Steel 304
- Washer: PTFE
- Gasket: EPDM
- Approval: WRAS Approved
- Pressure Rating: PN16
- Temperature Range: -10°C to 120°C
- Corrosion Resistance: Superior resistance to corrosion and wear
- Application: Residential, Commercial, and Industrial Water Systems
Share
FAQ's
What is the difference between a valve and an actuator?
What types of actuators are available?
The main types of actuators are:
Pneumatic actuators – use compressed air for fast, reliable operation.
Electric actuators – use electrical power for precise control.
Hydraulic actuators – use fluid pressure for high-torque applications.
Each type offers unique advantages depending on the environment, media, and system control needs.
How do I choose the right actuator for my valve?
To select the correct actuator, consider:
Valve type and torque requirement
Power source available (air, electric, or hydraulic)
Operating environment (temperature, humidity, hazardous area)
Control signal type (on/off or modulating)
Matching actuator torque and compatibility with the valve’s ISO mounting ensures reliable performance.
What are the main types of valves used in automation?
The most common valves in automated systems include:
Ball valves – for tight shutoff and quick operation.
Butterfly valves – for larger flow control with compact design.
Globe valves – for precise throttling and flow regulation.
Check valves – to prevent backflow.
Gate valves – for full bore flow isolation.
What’s the difference between a double-acting and spring-return actuator?
Double-acting actuators use air (or power) to both open and close the valve.
Spring-return actuators use air to open (or close) the valve, and a built-in spring to automatically return it to a safe position when power or air is lost — ideal for fail-safe operation.
How often should valves and actuators be serviced?
Regular maintenance intervals depend on operating conditions, but a good rule of thumb is to inspect every 6–12 months.
This includes checking for leaks, lubrication, seal wear, and actuator responsiveness to prevent unexpected downtime.
