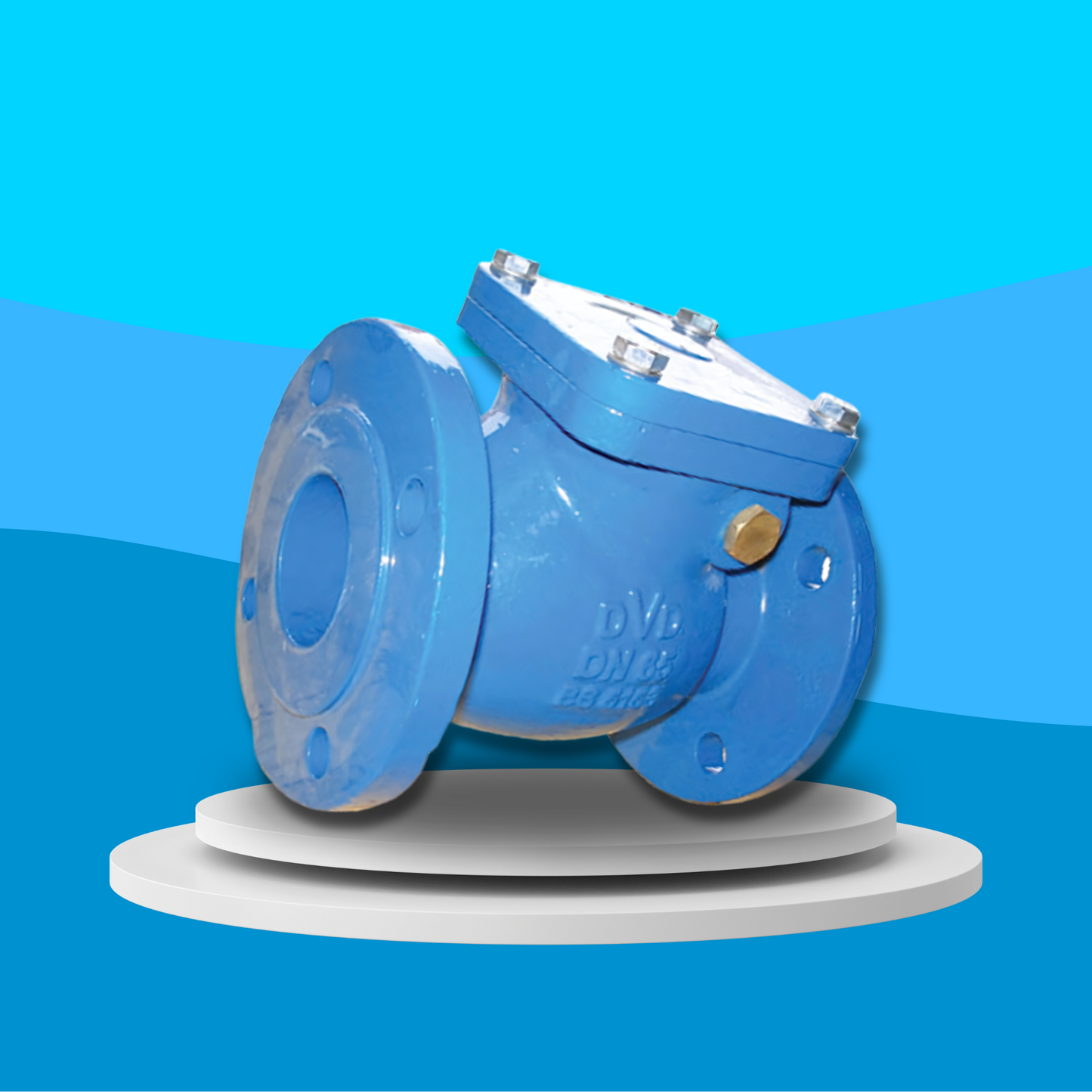

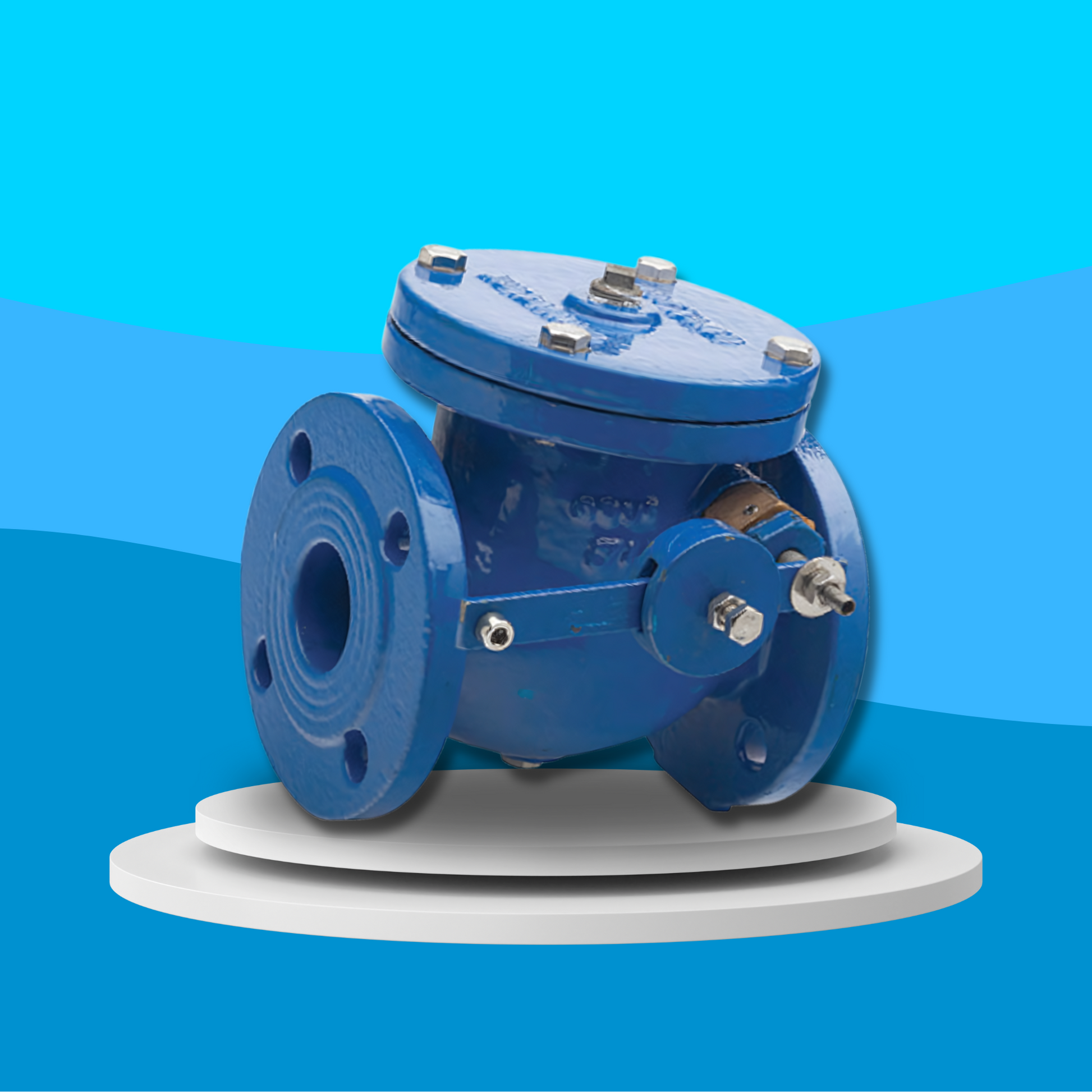

WRAS Approved Ductile Iron Flanged PN16 Check Valve
WRAS Approved Ductile Iron Flanged PN16 Check Valve
Couldn't load pickup availability
WRAS Certified
Discover the reliability of our WRAS Approved Ductile Iron Flanged PN16 Check Valve, engineered to ensure efficient flow control in your water systems. Featuring flanged BS EN 1092-2 PN16 connections and a durable epoxy-coated body, these valves comply with BS5153 standards and are built to withstand various water applications. With a metal seat and a robust construction, these check valves are designed to provide long-lasting performance in both residential and commercial settings.
Key Features:
- WRAS Approved: Certified to meet stringent WRAS standards for water safety and quality.
- Durable Construction: Made from high-quality ductile iron with an epoxy-coated body for enhanced durability and corrosion resistance.
- Metal Seat: Features a reliable metal seat for secure and efficient flow control.
- Versatile Application: Suitable for use in a wide range of water systems, including residential and commercial applications.
- Flanged Connections: Equipped with BS EN 1092-2 PN16 flanged connections for easy installation and integration.
- Temperature Range: Operates efficiently in temperatures ranging from -10°C to 70°C.
Specifications:
- Material: Ductile Iron
- Body Seat Ring: Copper Alloy
- Door Seat Ring: Copper Alloy
- Washer: Stainless Steel
- Bolts: Stainless Steel
- Hanger: Ductile Iron
- Gasket: EPDM
- Air Release Plug: Galvanized
- Inspection Cover: Ductile Iron
- Bush Nut: Copper Alloy
- Bush Seal: EPDM
- Spindle: Stainless Steel
- O-ring: EPDM
- Drain Plug: Stainless Steel
